Pentair Hypro 2545S Series Triplex Plunger Pump
Main Content Starts Here

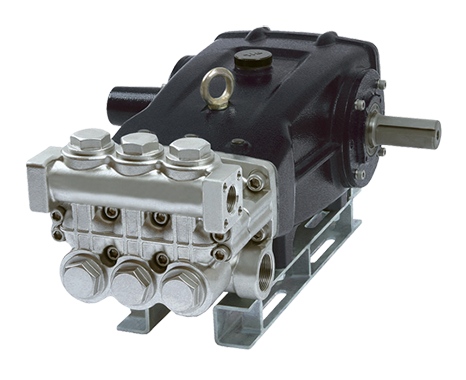

Pentair Hypro 2545S Series Triplex Plunger Pump

The Pentair Hypro 2545S triplex plunger pump is designed for durability, top performance, and convenient servicing. It achieves up to 47 gpm (177 lpm) and 1200 psi (83 bar). The 316 stainless steel two-piece manifold minimizes washout and corrosion.
- Oversized crankshaft, bearings and bronze connecting rod can handle the abuse of cold start-ups and intermittent operation
- Forged Stainless Steel plunger rod: Stepped plunger rod between plunger guide and oil seal eliminates seal failure due to plunger rod wear
- V-packings: Self-adjusting, spring-loaded, double V-packings maintain constant high pressure seal compression and extend seal and plunger life
Specifications
Pump Type:
Plunger
Housing Material:
Stainless Steel
Seal Material:
Viton
Ports:
1-1/2" NPT x 1" NPT
Item # | Max GPM | Max PSI | Max RPM | Inlet Port | Outlet Port |
---|---|---|---|---|---|
2545S | 47 | 1200 | 800 | 1-1/2" NPT | 1" NPT |
Item # | Max GPM | Max PSI | Max RPM | Inlet Port | Outlet Port |
---|---|---|---|---|---|
2545S | 47 | 1200 | 800 | 1-1/2" NPT | 1" NPT |
