Pentair Hypro 8304B-HM5C Gear Pump
Main Content Starts Here

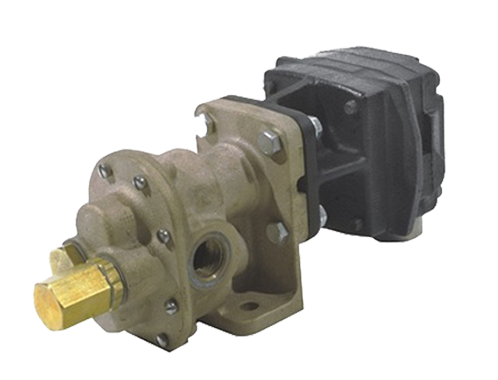

Pentair Hypro 8304B-HM5C Gear Pump

This positive-displacement pump is ideal for de-icing/antiicing(pre-wet). Combining the pump and motor as a single uniteliminates the need for shaft alignment or Love-Joy® coupling.The unit’s compact size allows it to be used in a wide varietyof locations and makes it especially attractive for quick, easyretrofit installations.
PUMP
- Optional pressure relief valve safeguards against pressurebuildup (8304BV models)
- Industry-proven gear pump design, minimal moving partsfor longevity
- Brass material not corroded by salt solutions
MOTOR
- State-of-the-art internal gear gerotor motor for superiorservice life
- Bypass adjustment allows fine tuning of flow control
- Hydraulic ports: 1/2" NPT inlet, 3/4" NPT outlet with check valve to safeguard against change in flow direction
Specifications
Pump Type:
Specialty
Ports:
1/2" NPT inlet, 3/4" NPT outlet with check valve to safeguard against change in flow direction
Item # | Max GPM | Max LPM | Max PSI | Max BAR | Max Hydraulic GPM | Max Hydraulic LPM |
---|---|---|---|---|---|---|
8304B-HM5C | 10.4 | 39.4 | 100 | 6.9 | 4.5 | 17 |
8304B | 10.4 | 39.4 | 100 | 6.9 | 4.5 | 17 |
8304BV | 10.4 | 39.4 | 100 | 6.9 | 4.5 | 17 |
Item # | Max GPM | Max LPM | Max PSI | Max BAR | Max Hydraulic GPM | Max Hydraulic LPM |
---|---|---|---|---|---|---|
8304B-HM5C | 10.4 | 39.4 | 100 | 6.9 | 4.5 | 17 |
8304B | 10.4 | 39.4 | 100 | 6.9 | 4.5 | 17 |
8304BV | 10.4 | 39.4 | 100 | 6.9 | 4.5 | 17 |
