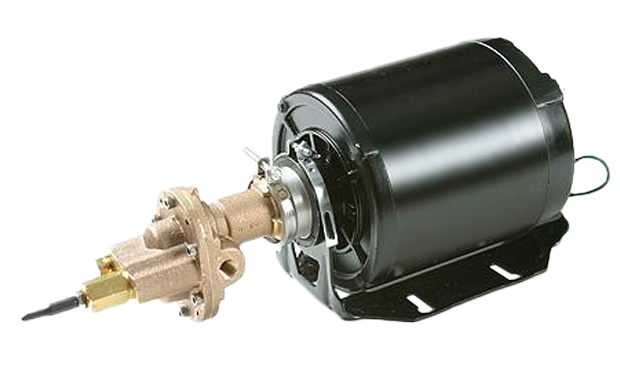

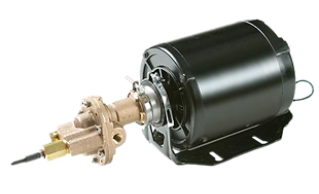

Pentair Shurflo Bronze Carbonator Gear Pumps
The Shurflo® self-priming, positive displacement, external rotary gear pumps are ideal for a wide range of intermittent and light-duty industrial, marine, agricultural, and commercial applications, providing a nearly pulseless flow. Close-coupled models are available directly mounted to NEMA framed, AC ODP single-phase, thermally overload-protected motors or as pump heads only for custom installations. All models include a pressure relief valve. Motor-driven models are HP configured to handle up to 500 SSU at 100 psi (specific gravity of 1.0). Excellent for water-based fluids. Feature 303 stainless steel shafts, carbon graphite bushings, and Buna-N mechanical carbon/ceramic faced seal with a temperature range of -20° to 210° F. Standard pressure relief valves can be ported internally or externally. Wet-end parts are constructed from bronze, brass, stainless steel (302, 303 and/or 18-8), graphite, carbon, and Buna-N. L-4083 OIPML-4082 Motor Manual
- Flows to 4.4 GPM
- Max. RPM: 1725
- Max. PSI: 100
- Suction Lift to 3.6 Feet
- Maximum Viscosity of 500 SSU at 1725 RPM (Max. Input Torque of 45 in-lbs.)
- Temperature Ranges from -20 to 210° F
- Maximum Working Pressure: 130 PSI
- Pumps can Operate Bi-Directionally (Reversible)
