Pentair Shurflo 166 Series Diaphragm Pumps
Main Content Starts Here

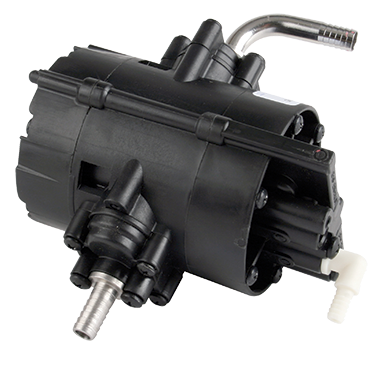

Pentair Shurflo 166 Series Diaphragm Pumps
Available in Santoprene, Viton, BUNA and EPDM, Shurflo® 166 Air Operated Demand Pumps employ a dual diaphragm design, with a patented fast action switching mechanism allowing for consistent flow and pressure. They are built for the toughest pumping applications and are available in a variety of elastomers that allow them to be compatible with mild caustic or acidic fluids. The Model 166 is ideal for chemical transfer, injection and spraying.
- 2-Chamber Dual Diaphragm
- Positive Displacement
- On-Demand Operation
- Chemically Resistant Polypropylene Body
- 30 to 60 PSI [2.1- 4.1 bar]
- 0.6 GPM Maximum Flow
Specifications
Open Flow GPM:
.6 GPM
Housing Material:
Polypropylene
Ports- Liquid:
1/4"
Ports- Air:
1/4"
Item # | Description | Distributor Package | Air Pressure | Diaphragm |
---|---|---|---|---|
166-200-36 | GP ASSY INDUST VITON | 166-200-36BX | 30-60 PSI | VITON |
166-200-46 | GP ASSY INDUST. BUNA | 166-200-46BX | 30-60 PSI | BUNA |
166-200-56 | GP ASSY INDUST EPDM | 166-200-56BX | 30-60 PSI | EPDM |
166-200-57 | GP ASSY INDUST SANTO | 166-200-57BX | 30-60 PSI | SANTOPRENE |
Item # | Description | Distributor Package | Air Pressure | Diaphragm |
---|---|---|---|---|
166-200-36 | GP ASSY INDUST VITON | 166-200-36BX | 30-60 PSI | VITON |
166-200-46 | GP ASSY INDUST. BUNA | 166-200-46BX | 30-60 PSI | BUNA |
166-200-56 | GP ASSY INDUST EPDM | 166-200-56BX | 30-60 PSI | EPDM |
166-200-57 | GP ASSY INDUST SANTO | 166-200-57BX | 30-60 PSI | SANTOPRENE |
