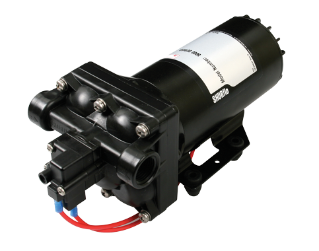

Pentair Shurflo 5000 Series Diaphragm Pumps
Designed for high flow, the Shurflo® 5000 series pump design was created with a unique one-piece co-molded diaphragm, assuring long life and top performance in any system. The 5000 series pump is built for powerful, smooth flow. The SHURFLO® quality reputation has been built on the reliability and dependability of every pump we build. Please click here for information on Model 5000 Series Kits.
- Heavy Duty Sealed Motor Optional
- Available Bypass
- Runs Dry without Damage
- Self-Priming
- CE Compliant, NSF Available
- Co-Molded Diaphragm
- Compact 4-Chamber Design
- Flow Rates up to 5.3 GPM
- Chemical-Resistant Elastomers
Specifications
| Item # | Voltage | Open Flow GPM | Amps (Max) | Control Pressure | Control Type | Port Sizes | Housing Material | Valve Material | Diaphragm Material | Motor Wiring |
|---|---|---|---|---|---|---|---|---|---|---|
| 5030-2201-A010 | 12 VDC | 3.0 | 7.5 | 55 PSI | Switch & Bypass | 1/2" - 14 NPSM | Polypropylene | EPDM | Santoprene | 16 AWG wire: 12" |
| 5030-2201-E010 | 24 VDC | 3.0 | 4.5 | 55 PSI | Switch & Bypass | 1/2" - 14 NPSM | Polypropylene | EPDM | Santoprene | 16 AWG wire: 12" |
| 5040-2201-D011 | 12 VDC | 4.0 | 10 | 55 PSI | Switch & Bypass | 1/2" - 14 NPSM | Polypropylene | EPDM | Santoprene | 14 AWG wire: 12" |
| 5040-2201-H011 | 24 VDC | 4.0 | 5 | 55 PSI | Switch & Bypass | 1/2" - 14 NPSM | Polypropylene | EPDM | Santoprene | 14 AWG wire: 12" |
| 5040-2301-D011 | 12 VDC | 4.0 | 10 | 55 PSI | Switch & Bypass | 1/2" - 14 NPSM | Polypropylene | EPDM | Santoprene | 14 AWG wire: 12" |
| 5040-2301-H011 | 24 VDC | 4.0 | 5 | 55 PSI | Switch & Bypass | 1/2" - 14 NPSM | Polypropylene | EPDM | Santoprene | 14 AWG wire: 12" |
| 5050-1301-C011 | 12 VDC | 5 | 15 | 60 PSI | Switch | 1/2" - 14 NPSM | Polypropylene | EPDM | Santoprene | 14 AWG wire: 12" |
| 5050-1301-G011 | 24 VDC | 5.0 | 8 | 60 PSI | Switch | 1/2" - 14 NPSM | Polypropylene | EPDM | Santoprene | 14 AWG wire: 12" |
| 5050-1310-D011 | 12 VDC | 5.3 | 18 | 60 PSI | Switch | 1/2" NPT-F | Polypropylene | Viton | Santoprene | 14 AWG wire: 12" |
| 5050-1310-H011 | 24 VDC | 5.3 | 8 | 60 PSI | Switch | 1/2" NPT-F | Polypropylene | Viton | Santoprene | 14 AWG wire: 12" |
| Item # | Voltage | Open Flow GPM | Amps (Max) | Control Pressure | Control Type | Port Sizes | Housing Material | Valve Material | Diaphragm Material | Motor Wiring |
|---|---|---|---|---|---|---|---|---|---|---|
| 5030-2201-A010 | 12 VDC | 3.0 | 7.5 | 55 PSI | Switch & Bypass | 1/2" - 14 NPSM | Polypropylene | EPDM | Santoprene | 16 AWG wire: 12" |
| 5030-2201-E010 | 24 VDC | 3.0 | 4.5 | 55 PSI | Switch & Bypass | 1/2" - 14 NPSM | Polypropylene | EPDM | Santoprene | 16 AWG wire: 12" |
| 5040-2201-D011 | 12 VDC | 4.0 | 10 | 55 PSI | Switch & Bypass | 1/2" - 14 NPSM | Polypropylene | EPDM | Santoprene | 14 AWG wire: 12" |
| 5040-2201-H011 | 24 VDC | 4.0 | 5 | 55 PSI | Switch & Bypass | 1/2" - 14 NPSM | Polypropylene | EPDM | Santoprene | 14 AWG wire: 12" |
| 5040-2301-D011 | 12 VDC | 4.0 | 10 | 55 PSI | Switch & Bypass | 1/2" - 14 NPSM | Polypropylene | EPDM | Santoprene | 14 AWG wire: 12" |
| 5040-2301-H011 | 24 VDC | 4.0 | 5 | 55 PSI | Switch & Bypass | 1/2" - 14 NPSM | Polypropylene | EPDM | Santoprene | 14 AWG wire: 12" |
| 5050-1301-C011 | 12 VDC | 5 | 15 | 60 PSI | Switch | 1/2" - 14 NPSM | Polypropylene | EPDM | Santoprene | 14 AWG wire: 12" |
| 5050-1301-G011 | 24 VDC | 5.0 | 8 | 60 PSI | Switch | 1/2" - 14 NPSM | Polypropylene | EPDM | Santoprene | 14 AWG wire: 12" |
| 5050-1310-D011 | 12 VDC | 5.3 | 18 | 60 PSI | Switch | 1/2" NPT-F | Polypropylene | Viton | Santoprene | 14 AWG wire: 12" |
| 5050-1310-H011 | 24 VDC | 5.3 | 8 | 60 PSI | Switch | 1/2" NPT-F | Polypropylene | Viton | Santoprene | 14 AWG wire: 12" |
| 5050-1311-D011 | 12 VDC | 5.3 | 18 | 60 PSI | Switch | 1/2"-14 NPSM | Polypropylene | Viton | Santoprene | 14 AWG wire: 12" |
| 5050-1311-H011 | 24 VDC | 5.3 | 8 | 60 PSI | Switch | 1/2"-14 NPSM | Polypropylene | Viton | Santoprene | 14 AWG wire: 12" |
| 5050-2201-C011 | 12 VDC | 5.0 | 13 | 55 PSI | Switch & Bypass | 1/2" - 14 NPSM | Polypropylene | EPDM | Santoprene | 14 AWG wire: 12" |
| 5050-2201-G011 | 24 VDC | 5.0 | 5 | 55 PSI | Switch & Bypass | 1/2" - 14 NPSM | Polypropylene | EPDM | Santoprene | 14 AWG wire: 12" |
| 5050-2301-C011 | 12 VDC | 5.0 | 13 | 55 PSI | Switch & Bypass | 1/2" - 14 NPSM | Polypropylene | EPDM | Santoprene | 14 AWG wire: 12" |
| 5050-2301-G011 | 24 VDC | 5.0 | 5 | 55 PSI | Switch & Bypass | 1/2" - 14 NPSM | Polypropylene | EPDM | Santoprene | 14 AWG wire: 12" |
| 5030-2101-E010 | 24 VDC | 3.0 | 4.5 | 30 | Switch & Bypass | 1/2"-14 NPSM | Polypropylene | EPDM | Santoprene | 16 AWG wire: 12" |
