Pentair Shurflo Controllers

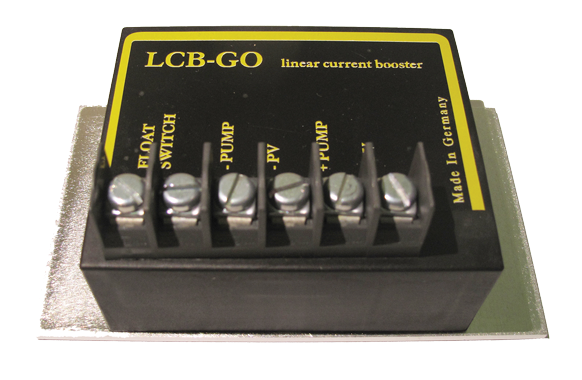

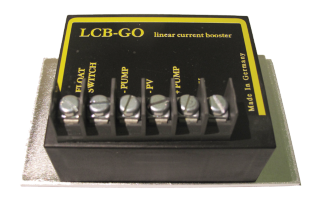

Boost your DC solar pump's performance by up to 30%. Controller optimizes your solar water pumping system by translating the current and voltage from your photovoltaic panels, into a combination that is better matched to that needed by the pump. With the optional float switch installed, the controller will automatically stop pumping when the reservoir is full.
- Operates on 24 VDC
- Increases Daily Water Output up to 30%
- System Starts Pumping Earlier in the Morning
- System Stops Pumping Later in the Evening
- Protects Pump from Low or High Volume Conditions
- Terminals for Float Switch
Specifications
| Item # | Voltage | Max Input Voltage | Max Output Voltage | ENCLOSURE | Accessories | Adjusting Starting Voltage | Battery Installation | Float Switch Circuit | Pump Switch | Amps (Max) | Voltage Protection |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 902-100 | 24 VDC | 45 VDC | 28 VDC | OPEN | None | No | Not Available | Yes | No | 5 | High and Low |
| 902-200 | 12/24 VDC | 45 VDC | 29 VDC | Waterproof | Water Level Sensors Included | Yes | Yes | Yes | Yes | 7 | High and Low |
