Pentair Shurflo Model 100 Series Pumps

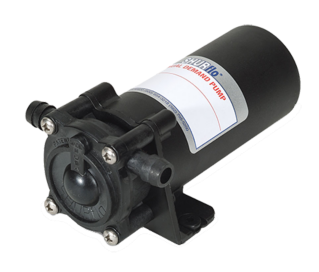

Compact, rugged and reliable, the 100 is a positive displacement pump for flooded inlet, low volume, and low-pressure applications. Perfect where a low volume fill pump is needed, the unique wobbler design has no valves, and can pump a wide range of chemicals and fluids.

  • Pump must be mounted below the supply tank to prime.
  • Not for applications that require dry running
  • Easy Installation
  • Unique Design Eliminates Valves
  • 1 GPM Open Flow; 30 PSI Maximum
Find out where to purchase online or in a retail location near you.
Brochures
Manuals
Installation and Operation Manual




Specifications

Open Flow GPM: 1.0
Control Type: None
Control Pressure: 20 PSI Max
Port Sizes: 3⁄8" Barb
Housing Material: Ryton
Item #VoltageO-Ring MaterialLip Seal MaterialMotor WiringMotor Finish Base
100-000-2012 VDCEPDMBUNANoneZinc/Aluminum
100-000-2112 VDCEPDMBUNA16 AWG wires: 16"Splashproof/Nylon
100-000-2512 VDCBUNABUNA16 AWG wires: 12"Zinc/Aluminum
100-000-2612 VDCBUNABUNA16 AWG wires: 16"Splashproof/Nylon
100-000-2812 VDCEPDMBUNANoneZinc/Aluminum
100-000-2912 VDCVITONVITONNoneZinc/Aluminum
100-009-2112 VDCEPDMBUNA16 AWG wires: 16"Splashproof/Nylon
Item #VoltageO-Ring MaterialLip Seal MaterialMotor WiringMotor Finish Base
100-000-2012 VDCEPDMBUNANoneZinc/Aluminum
100-000-2112 VDCEPDMBUNA16 AWG wires: 16"Splashproof/Nylon
100-000-2512 VDCBUNABUNA16 AWG wires: 12"Zinc/Aluminum
100-000-2612 VDCBUNABUNA16 AWG wires: 16"Splashproof/Nylon
100-000-2812 VDCEPDMBUNANoneZinc/Aluminum
100-000-2912 VDCVITONVITONNoneZinc/Aluminum
100-009-2112 VDCEPDMBUNA16 AWG wires: 16"Splashproof/Nylon
