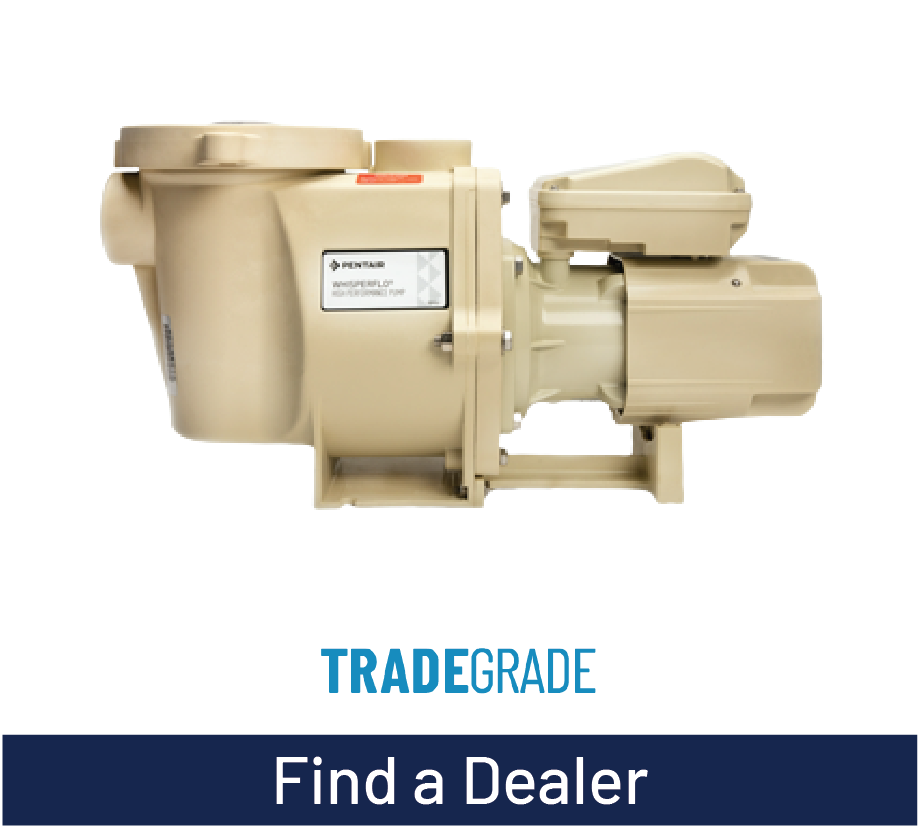

Pentair is proud to announce updates to the line of WhisperFlo High Performance Pumps. We've added the first and only single-speed pump models to use NEMA Premium® Efficient motors for pool applications.* The new and improved WhisperFlo DOE compliant pumps are designed to help save electricity and optimize hydraulic horsepower without sacrificing performance.
DOE COMPLIANT SINGLE-SPEED TEFC: 015583
ENERGY EFFICIENT SINGLE-SPEED - NOT FOR SALE IN THE USA: 011511-INT, 011512-INT
TEFC SINGLE-SPEED - NOT FOR SALE IN THE USA: 011527-INT, 011528-INT, 011529-INT, 011530-INT
EFFICIENT SINGLE PHASE - 50HZ INPUT POWER FREQUENCY: 347926-INT, 347927-INT, 347928-INT, 347929-INT, 347930-INT
| Item # | Voltage | Full Load Amps | THP | WEF | HHP | SF | Primary Listings and Certifications | Port Size (NPT) | Carton Wt. (Lbs) | DOE Compliant | Purchase Options |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 015583 | 115/208-230 | 10.5/5.5-5.4 | 1.10 | 3.40 | 0.69 | 1.0 | UL†, NSF‡ | 2" | 50 | Yes | Available Through Dealer |
| 347930-INT | 240 | 9.4 | 2.20 | 1.10 | 2" | 55 | No | Available Through Dealer | |||
| 347929-INT | 240 | 7.2 | 1.65 | 1.10 | 2" | 52 | No | Available Through Dealer | |||
| 347928-INT | 240/120 | 6.9/13.8 | 1.10 | 1.10 | 2" | 52 | No | Available Through Dealer | |||
| 347927-INT | 240/120 | 7.5/15.0 | 0.83 | 1.10 | 2" | 45 | No | Available Through Dealer | |||
| 347926-INT | 240/120 | 7.5/15.0 | 0.55 | 1.10 | 2" | 45 | No | Available Through Dealer | |||
| 011530-INT | 208-230 | 14.6-12.7 | 3.45 | 1.0 | UL, NSF | 2" | 62 | No | Available Through Dealer | ||
| 011529-INT | 208-230 | 11.7-10.3 | 2.60 | 1.0 | UL, NSF | 2" | 58 | No | Available Through Dealer | ||
| 011528-INT | 208-230 | 10.3-9.1 | 2.21 | 1.0 | UL, NSF | 2" | 53 | No | Available Through Dealer | ||
| 011527-INT | 115/208-230 | 15.1/8.5-7.7 | 1.65 | 1.0 | UL, NSF | 2" | 50 | No | Available Through Dealer |
| Item # | Voltage | Full Load Amps | THP | WEF | HHP | SF | Primary Listings and Certifications | Port Size (NPT) | Carton Wt. (Lbs) | DOE Compliant | Purchase Options |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 015583 | 115/208-230 | 10.5/5.5-5.4 | 1.10 | 3.40 | 0.69 | 1.0 | UL†, NSF‡ | 2" | 50 | Yes | Available Through Dealer |
| 347930-INT | 240 | 9.4 | 2.20 | 1.10 | 2" | 55 | No | Available Through Dealer | |||
| 347929-INT | 240 | 7.2 | 1.65 | 1.10 | 2" | 52 | No | Available Through Dealer | |||
| 347928-INT | 240/120 | 6.9/13.8 | 1.10 | 1.10 | 2" | 52 | No | Available Through Dealer | |||
| 347927-INT | 240/120 | 7.5/15.0 | 0.83 | 1.10 | 2" | 45 | No | Available Through Dealer | |||
| 347926-INT | 240/120 | 7.5/15.0 | 0.55 | 1.10 | 2" | 45 | No | Available Through Dealer | |||
| 011530-INT | 208-230 | 14.6-12.7 | 3.45 | 1.0 | UL, NSF | 2" | 62 | No | Available Through Dealer | ||
| 011529-INT | 208-230 | 11.7-10.3 | 2.60 | 1.0 | UL, NSF | 2" | 58 | No | Available Through Dealer | ||
| 011528-INT | 208-230 | 10.3-9.1 | 2.21 | 1.0 | UL, NSF | 2" | 53 | No | Available Through Dealer | ||
| 011527-INT | 115/208-230 | 15.1/8.5-7.7 | 1.65 | 1.0 | UL, NSF | 2" | 50 | No | Available Through Dealer | ||
| 011512-INT | 115/208-230 | 12.8/7.0-6.4 | 1.25 | 1.0 | UL, NSF | 2" | 44 | No | Available Through Dealer | ||
| 011511-INT | 115/208-230 | 8.8/4.5-4.4 | 0.95 | 1.0 | UL, NSF | 2" | 44 | No | Available Through Dealer | ||
| EC-015583 | 115/208-230 | 10.5/5.5-5.4 | 1.10 | 3.40 | 0.69 | 1.0 | UL†, NSF‡ | 2" | 50 | Yes | Available Online |
*Pentair is proud to announce updates to the line of WhisperFlo High Performance Pumps. We've added the first and only single-speed pump models to use NEMA Premium® Efficient motors for pool applications.
† ‘UL’ indicates that pump bears a UL mark signifying evaluation to U.S. Standards UL1081 for Permanently Connected Swimming Pool and Spa Pumps and to Canadian Standards CAN/CSA C22.2 No. 108-01 Liquid Pumps For Swimming Pools Only (Enclosure 3).
‡ ‘NSF’ indicates that pump bears a mark signifying evaluation to NSF Standard 50 For Self-Priming Centrifugal Pumps For Swimming Pools, Spas and Hot Tubs.
'INT' is not DOE-compliant and can only be purchased for sale outside of the United States.
Product may have been evaluated to other state and local regulatory standards. Listing status may change. Always confirm status with appropriate agency if in doubt.
Products beginning with EC- are exclusive to e-commerce sales. For warranty information please visit www.pentair.com/warranty.
