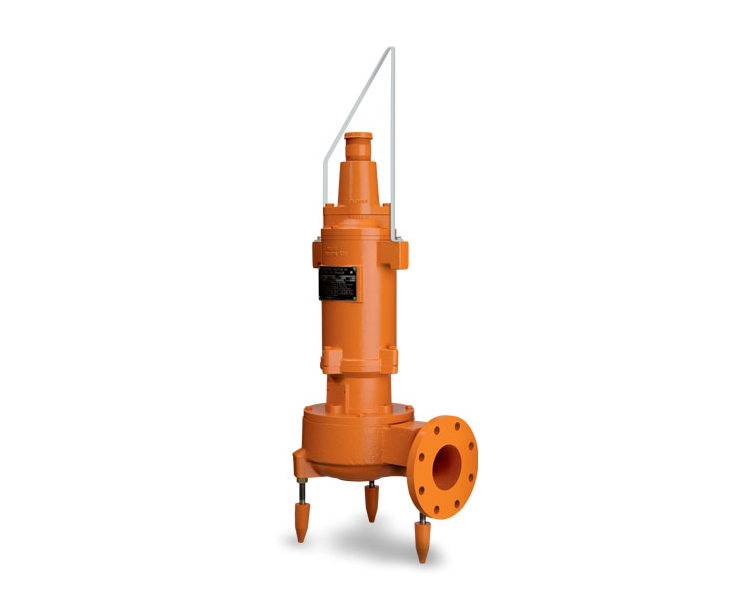

Pentair Berkeley B-AG Series Sewage Pumps

This product has been discontinued.

AG Series pumps are the right choice to handle stringy trash, fibrous wastes, slurries, and other difficult to pump solids without plugging. AG Series pumps have been field proven to provide reliable operation and dependable performance.

  • Reliable Operation - Passes stringy trash, fibrous waste and other difficult solids without plugging the pump.

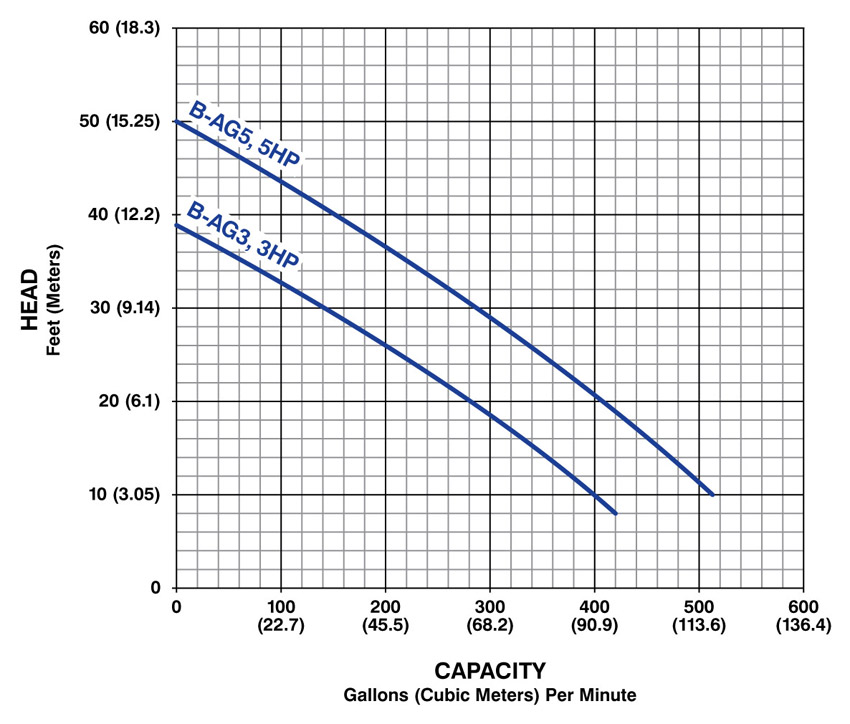

  • Strong Pumping Performance - Heads to 50 feet and Capacities to 505 GPM.
  • Durable Long-Life Construction - Tough powder-coated finish on liquid end prevents build-up of salt crystals and solids. Heavy-duty cast iron construction.
  • Simple, Easy Installations - All pumps equipped with lifting handle and legs.
  • Maximum Motor Protection - Double shaft seals and seal leak probe offer maximum protection.
Find out where to purchase online or in a retail location near you.

Specifications

Item #HorsepowerVoltageRPMMAX RUNNING AMPSPOWER and CONTROL CORDWEIGHTSOLIDS HANDLING CAPABILITYImpellerUPPER SHAFT SEALLOWER SHAFT SEALMOTOR SHAFTFASTENERS
8651Available in 3 HP and 5 HP230v, 1-phase, 60 Hz1750 RPM41 amps (5HP model)25 ft. SOW/SOW-A210 lbs (5 HP model)3" sphericalDuctile Iron, Class 65 ASTM A536-80ype 2100, Carbon/CeramicType 2100, Silicon Carbide/Silicon Carbide416 Stainless Steel300 Series Stainless Steel
Item #HorsepowerVoltageRPMMAX RUNNING AMPSPOWER and CONTROL CORDWEIGHTSOLIDS HANDLING CAPABILITYImpellerUPPER SHAFT SEALLOWER SHAFT SEALMOTOR SHAFTFASTENERS
8651Available in 3 HP and 5 HP230v, 1-phase, 60 Hz1750 RPM41 amps (5HP model)25 ft. SOW/SOW-A210 lbs (5 HP model)3" sphericalDuctile Iron, Class 65 ASTM A536-80ype 2100, Carbon/CeramicType 2100, Silicon Carbide/Silicon Carbide416 Stainless Steel300 Series Stainless Steel
