Pentair WellMate SP Series

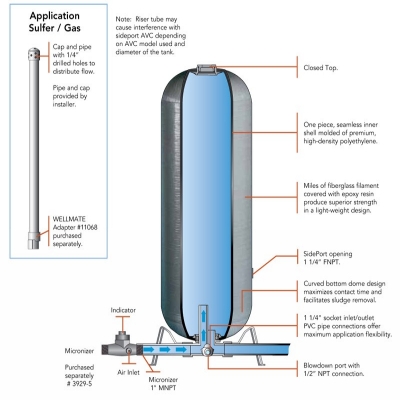

Made of all NSF/ANSI-61 certified material, SidePort “SP” tanks contain no harmful traces of metal (as with steel tanks) that could pass into your water. Our tanks are environmentally safe and 100% lead free. Designed as a direct replacement for galvanized steel and epoxy-lined steel tanks that can save you time and money.
- Corrosion-proof composite construction.
- UV protection – All SP tanks come with additional urethane coating for years of added protection.
- Light weight minimizes labor cost; no need for heavy equipment. No rust or corrosion means no maintenance. Long lasting, durable finish.
- Applications where high sulfur content is present and environments where methane or other well gases are present.
Specifications
Item # | CAPACITIES | DRAWDOWN IN | DIAMETER INCH CM | OVERALL HEIGHT INCH CM | HEIGHT INLET OUTLET TO FLOOR | HEIGHT SIDEPORT TO FLOOR INCH CM | ASSEMBLY WEIGHT | PALLET QUANTITY |
---|---|---|---|---|---|---|---|---|
SP-7 | 30 / 114 | 7 / 26 | 16 / 41 | 43 3/4 / 111 | 1 1/2 / 3.8 | 14 / 35.6 | 26 / 11.8 | 9 |
SP-9 | 40 / 151 | 9 / 34 | 16 / 41 | 56 1/2 / 144 | 1 1/2 / 3.8 | 15.5 / 39.4 | 35 / 15.9 | 9 |
SP-9SQ | 47 / 178 | 9 / 34 | 21 / 53 | 41 1/4 / 105 | 2 / 5.1 | 16.9 / 42.9 | 48 / 21.8 | 4 |
SP-18 | 80 / 303 | 18 / 67 | 21 / 53 | 62 /157 | 2 / 5.1 | 18.3 /46.5 | 67 / 30.5 | 1 |
SP-26 | 120 /454 | 26 / 98 | 24 / 61 | 7 1/2 / 184 | 2 / 5.1 | 20.2 / 51.3 | 97 / 44.1 | 1 |
SP-35 | 205 / 776 | 35 / 132 | 36 / 91 | 73 / 185 | 7 / 17.8 | 31.5 /80 | 290 / 131.8 | 1 |
SP-50 | 264 / 999 | 50 / 189 | 36 / 91 | 82 / 208 | 7 / 17.8 | 31.5 / 80 | 300 / 136.4 | 1 |
