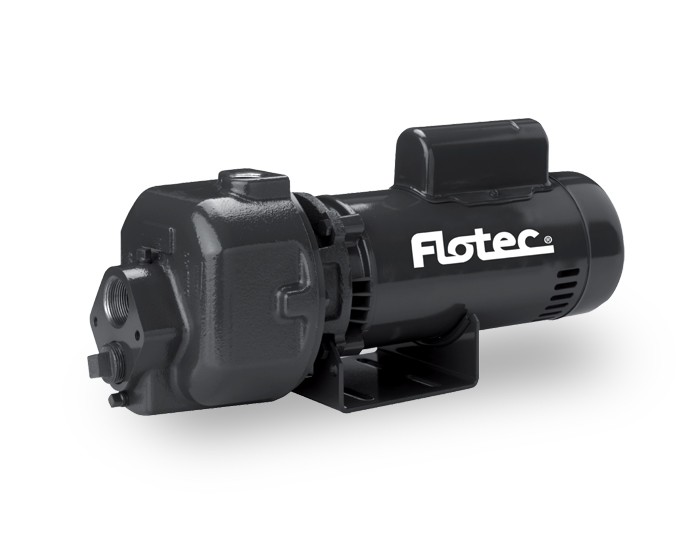

Pentair Flotec FP5230 1 HP Cast Iron Sprinkler Pump

Main Content Starts Here

Pentair Flotec FP5230 1 HP Cast Iron Sprinkler Pump

Powerful 1 HP cast iron sprinkler pump moves up to 45 gpm. Perfect for sprinkler systems or water transfer applications.

Key Features

  • Superior performance at depths-to-water of 25' or less Ideal for larger sprinkler systems and water transfer
  • Rugged cast iron construction Voltage-selectable to run on 115v or 230v

Warranty

1 year limited warranty

Find out where to purchase online or in a retail location near you.
Where to Buy

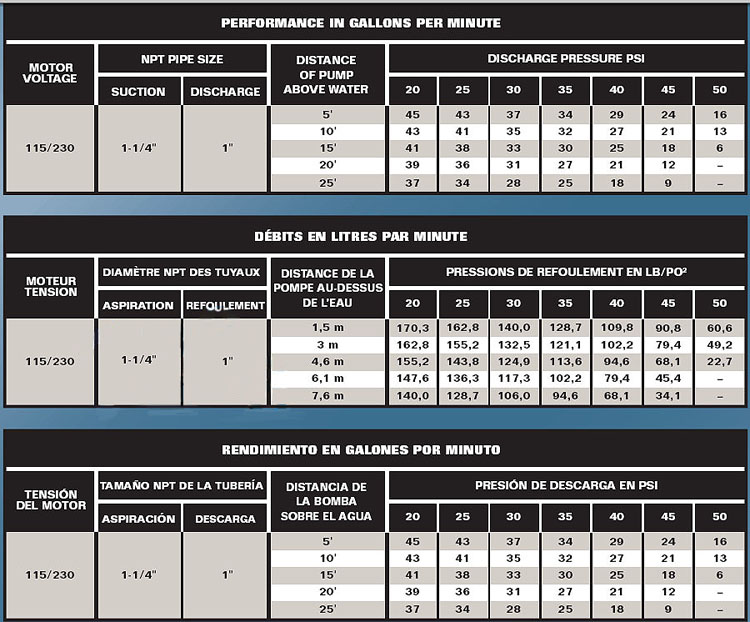

PERFORMANCE CURVES



Specifications

Body Construction: Cast Iron
MAX LIFT: 25'
Suction Pipe Size: 1-1/4" NPT
DISCHARGE PIPE SIZE: 1" NPT
Item #Horse PowerMAXIMUM CAPACITYFLOW at 10-foot LIFT and 30 PSIAMP DRAWVoltageRECOMMENDED BREAKERMAX WATER TEMP
FP52301 HP45 GPM35 GPM8.8 amps on 230v / 16.6 amps on 115v230v / 115v , 60 Hz15 amp on 230v / 25 amp on 115v140 F (60 C)
Item #Horse PowerMAXIMUM CAPACITYFLOW at 10-foot LIFT and 30 PSIAMP DRAWVoltageRECOMMENDED BREAKERMAX WATER TEMP
FP52301 HP45 GPM35 GPM8.8 amps on 230v / 16.6 amps on 115v230v / 115v , 60 Hz15 amp on 230v / 25 amp on 115v140 F (60 C)
