Pentair Flotec E5005TLT Professional Series 1/2 HP Submersible Cast Iron Effluent Pump

Main Content Starts Here

Pentair Flotec E5005TLT Professional Series 1/2 HP Submersible Cast Iron Effluent Pump

This rugged cast iron effluent pump handles up to ½” solids virtually without clogging.  It is perfect for septic tank systems where effluent has to be pumped up to a tank or leach field.  It is capable of handling grey water produced by laundry, bath and dishwashers.  This pump does not pump flushable waste such as sewage.

KEY FEATURES

  • Handles up to ½” solids
  • Rugged cast-iron construction for longer pump life
  •  Ideal for septic tank, laundry and dishwasher applications
  •  Rust-proof impellers
  • Reliable, professional design
  • Superior performance

WARRANTY

5 year limited warranty

Find out where to purchase online or in a retail location near you.
Where to Buy

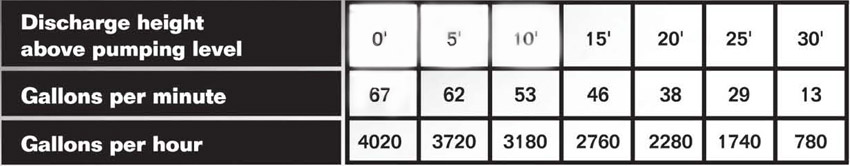

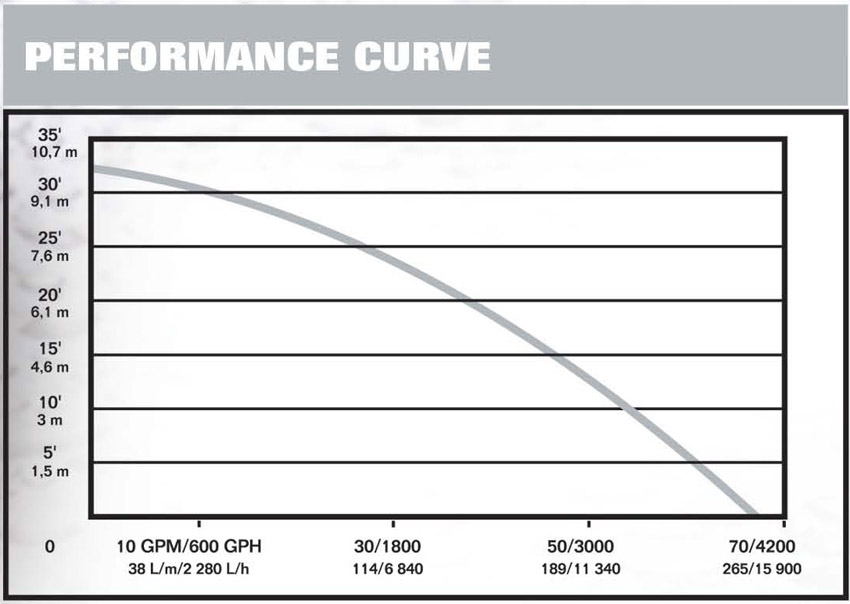

Performance Curves




Specifications

Item #Horsepower
E5005TLT1/2
Item #Horsepower
E5005TLT1/2
Show less

BODY CONSTRUCTION:  Cast Iron
HORSEPOWER:  1/2 HP
MAXIMUM HEAD:  32' (9.8 m)
MAXIMUM CAPACITY:  62 GPM (235 lpm)
FLOW at 10' LIFT:  53 GPM (201 lpm)
SWITCH TYPE:  Tethered Float
MINIMUM SUMP DIAMETER:  14" (356 mm)
DISCHARGE PIPE SIZE:  1-1/2" NPT
MAXIMUM SOLIDS HANDLING SIZE:  1/2" (12mm)
AMP DRAW (full load):  12.5 Amps
CORD LENGTH:  20’ (6.1 m)VOLTAGE:  115V, 60 Hz
MAXIMUM LIQUID TEMPERATURE:  130°F (0°-54°C)
