Pentair Flotec FP4022-10 3/4 HP Thermoplastic Shallow Well Jet Pump

This new revision of an "old hand" provides good pressure pumping from wells where the depth-to-water is 25' or less.

KEY FEATURES

  • Perfect for shallow wells (depth-to-water less than 25')
  • Thermoplastic construction for higher corrosion resistance
  • 1-1/4" Suction / 1" Discharge
  • Comes with pre-wired 30/50 pressure switch

WARRANTY

1 year limited warranty

Find out where to purchase online or in a retail location near you.

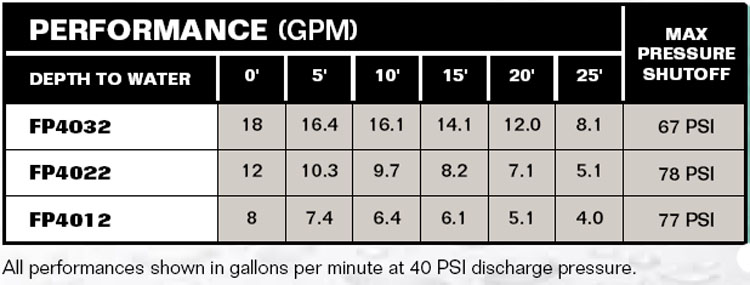

Performance Curves

PerformanceCurves_Thermoplastic Shallow Well Jet Pump 3/4 HP

Specifications

Item #Horsepower
FP4022-103/4
Item #Horsepower
FP4022-103/4

BODY CONSTRUCTION:  Thermoplastic
MAXIMUM CAPACITY:  12 GPM
FLOW at 10' LIFT and 40 PSI:  9.7 GPM
MAX LIFT:  25'
MAXIMUM PRESSURE:  78 psi
PRESSURE SWITCH SETTING:  30/50
SUCTION PIPE SIZE:  1-1/4" NPT
DISCHARGE PIPE SIZE:  1" NPT
AMP DRAW (full load):  6.1 amps on 230v / 12.2 amps on 115v
VOLTAGE:  230v / 115v, 60 Hz
RECOMMENDED BREAKER:  15 amp on 230v / 20 amp on 115v
MAXIMUM WATER TEMPERATURE:  140 °F (60 °C)
