Pentair Flotec FP4122-08 3/4 HP Cast Iron Shallow Well Jet Pump

Cast iron shallow well jet pumps provide superior performance and high capacities with more pressure for shallow wells 25' or less. All units feature dual voltage motor.

KEY FEATURES

  • Superior performance at depths to water of 25' or less
  • Rugged, heavy-duty cast iron pump housing
  • Ready-to-install 230 volt motor - see manual for 115 volt conversion
  • 1-1/4" NPT suction and 1" NPT discharge pipe sizes

WARRANTY

1 year limited warranty

Find out where to purchase online or in a retail location near you.

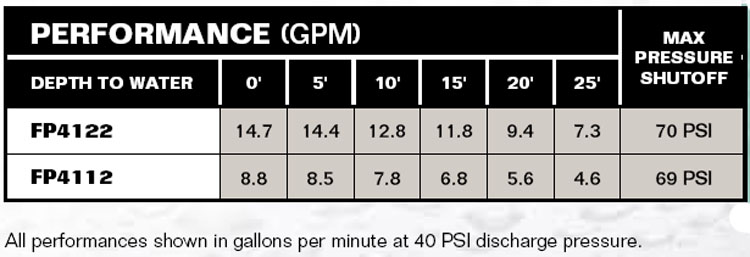

Performance Curves

PerformanceCurves_Cast Iron Shallow Well Jet Pump 3/4 HP

Accessories

Specifications

BODY CONSTRUCTION:  Cast Iron
HORSEPOWER:  3/4
MAXIMUM CAPACITY:  14.7 GPM
FLOW at 10' LIFT and 40 PSI:  12.8 GPM
MAX LIFT:  25'
MAXIMUM PRESSURE:  70 psi
MAXIMUM INLET PRESSURE:
PRESSURE SWITCH SETTING:  30/50
SUCTION PIPE SIZE:  1-1/4" NPT
DISCHARGE PIPE SIZE:  1" NPT
AMP DRAW (full load):  6.1 amps on 230v 12/2 amps on 115v
VOLTAGE:  230v / 115v , 60 Hz
RECOMMENDED BREAKER:  15 amp on 230v / 20 amp on 115v
MAXIMUM WATER TEMPERATURE:  140 °F (60 °C)
