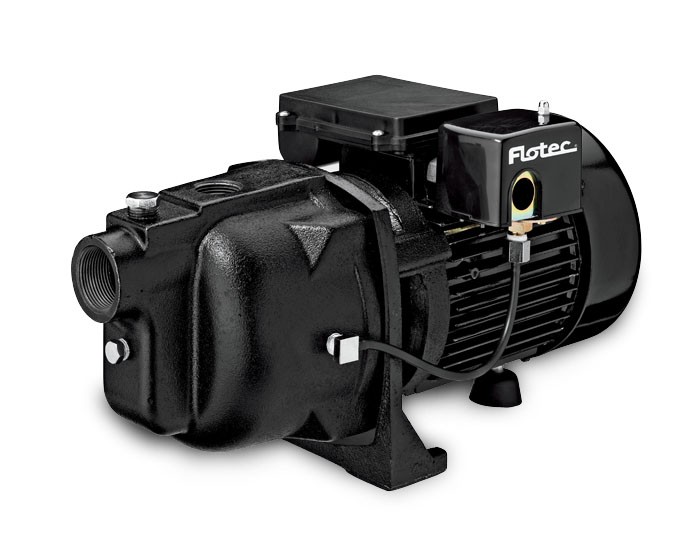

Pentair Flotec FP4150 1 HP Cast Iron Shallow Well Jet Pump

1 HP cast iron shallow well jet pump can provide up to 21 GPM for medium to large homes, cabins, or trailers that pump from a shallow well with depth-to-water of 25' or less

KEY FEATURES

  • Rugged Cast Iron Construction
  • Superior Performance at Depths-to-Water of 25' or Less
  • Built-In Pre-Wired Pressure Switch
  • Heavy Duty Dual Voltage Motor Can Run on 230v or 115v (factory preset to 230v)

WARRANTY

1-year limited warranty

Explore purchase options available for this product.
Where to Buy

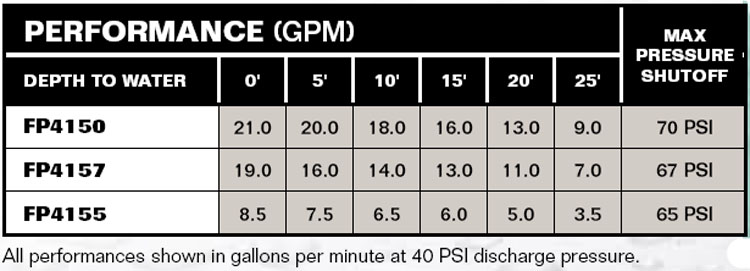

Performance Curve

PerformanceCurves_1 HP Cast Iron Shallow Well Jet Pump

Specifications

BODY CONSTRUCTION:  Cast Iron
HORSEPOWER:  1 HP
MAXIMUM CAPACITY:  21 GPM (79.4 LPM)
FLOW at 10' LIFT and 40 PSI:  18 GPM (68.1 LPM)
MAX LIFT:  25'
MAX SHUT-OFF PRESSURE:  70 PSI
SUCTION SIZE:  1-1/4" NPT
DISCHARGE SIZE:  1" NPT
AMP DRAW (full load):  6 amps on 230v / 12 amps on 115v
VOLTAGE:  230v / 115v AC, 60 Hz (factory preset to 230v)
RECOMMENDED CIRCUIT BREAKER:  15 amp on 230v / 20 amp on 115v
MAXIMUM WATER TEMPERATURE:
