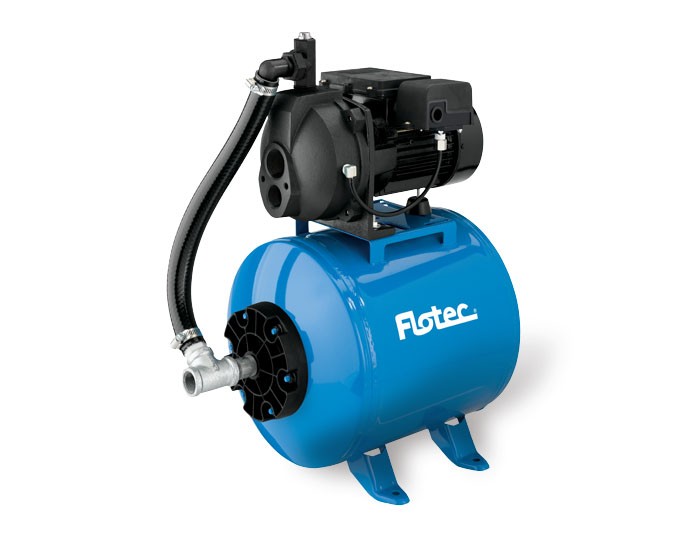

Pentair Flotec FP420515H 1/2 HP Cast Iron Convertible Deep Well Jet Pump and Tank Combo

Main Content Starts Here

Pentair Flotec FP420515H 1/2 HP Cast Iron Convertible Deep Well Jet Pump and Tank Combo

Compact design makes this unit for small areas.  Can pull water from as deep as 70' to provide water to your small home, cabin, trailer, etc.

KEY FEATURES

  • For Deep or Shallow Wells
  • Superior Performance -- At depths to water of 70' or less
  • Compact System -- Complete system with pressure gauge, pressure switch, pressure regulator, jet kit and all necessary connectors from pump to tank
  • Heavy-Duty Dual-Voltage Motor -- Preset at 115V
  • Durable Construction -- Heavy-duty cast iron pump housing
  • Pre-Charged Pressure Tank with 15-Gallon Equivalent Capacity
  • Corrosion-resistant, heavy-gauge steel construction with baked-on finish

WARRANTY

1-year limited warranty

Find out where to purchase online or in a retail location near you.

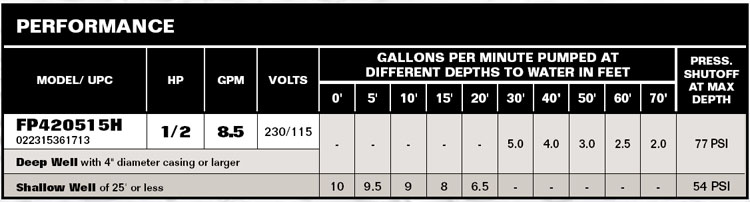

Performance Curves

PerformanceCurves_1/2 HP Cast Iron Convertible Deep Well Jet Pump and Tank Combo

Accessories

Specifications

BODY CONSTRUCTION:  Pump: Cast Iron / Tank: Steel Shell w/ Nylon Bladder
HORSEPOWER:  1/2 HP
MAXIMUM CAPACITY:  10 GPM (shallow well)
FLOW at 10' LIFT and 40 PSI:  9 GPM (shallow well)
MAX LIFT:  70'
MAX SHUT-OFF PRESSURE:  77 PSI (shallow well)
SUCTION SIZE:  1-1/4" NPT
DRIVE SIZE:  1" NPT
DISCHARGE SIZE:  1" NPT
AMP DRAW (full load):  7 amps on 115v / 3.5 amps on 230v
VOLTAGE:  115v / 230v AC, 60 Hz (factory preset at 115v)
RECOMMENDED BREAKER:  15 amp
