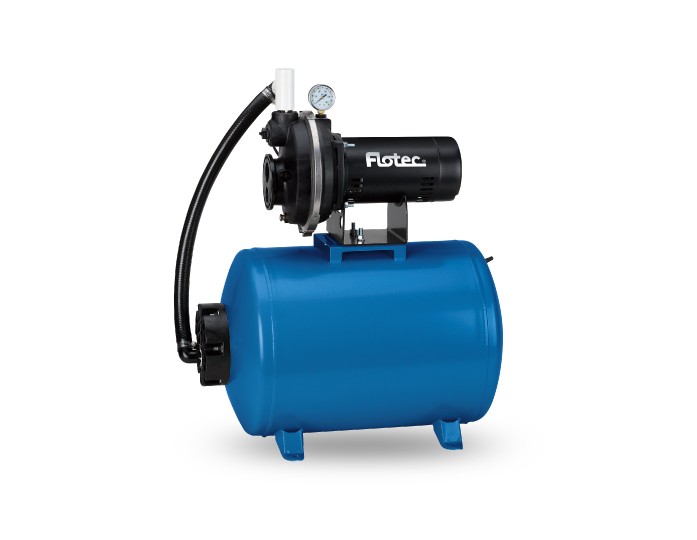

Pentair Flotec FP431242 1/2 HP Convertible Jet/Tank System

Corrosion-resistant convertible jet/tank system is perfect for compact installations where space is at a premium. Pump comes already mounted on tank.

Key Features

  • Superior performance at depths to water of 100' or less
  • Pre-charged 42 gallon tank is more efficient than conventional tanks of the same physical size, because it delivers up to twice the amount of water between pump starts and stops
  • Rugged construction of heavy gauge steel with baked on finish for maximum corrosion resistance

Warranty

1 year limited warranty

Find out where to purchase online or in a retail location near you.
Where to Buy

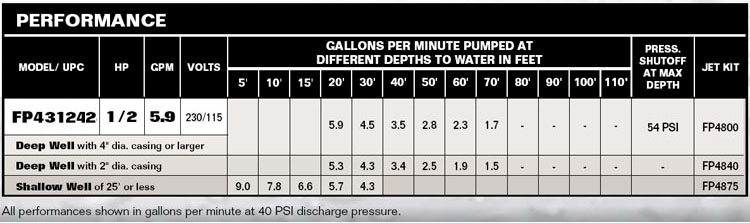

Performance Curves

PerformanceCurves_Convertible Jet/Tank System 1/2 HP

Specifications

Body Construction: Thermoplastic
PRESSURE SWITCH SETTING: 54 psi (deep well / 62 psi (shallow well)
Suction Pipe Size: 1-1/4" NPT
Drive Pipe Size: 1" NPT
DISCHARGE PIPE SIZE: 1" NPT
MAX LIFT: 25' for shallow well jet kit / 70' for deep well jet kit
Item #Horse PowerMAXIMUM CAPACITYAMP DRAWVoltageRECOMMENDED BREAKERFLOW at 10-foot LIST and 40 PSI
FP4312421/29 GPM9.9 Amps on 115V / 4.95 Amps on 230V115v/230v, 60 Hz (factory preset to 115v)15 Amps 7.8 GPM (Shallow well setup)
Item #Horse PowerMAXIMUM CAPACITYAMP DRAWVoltageRECOMMENDED BREAKERFLOW at 10-foot LIST and 40 PSI
FP4312421/29 GPM9.9 Amps on 115V / 4.95 Amps on 230V115v/230v, 60 Hz (factory preset to 115v)15 Amps 7.8 GPM (Shallow well setup)
