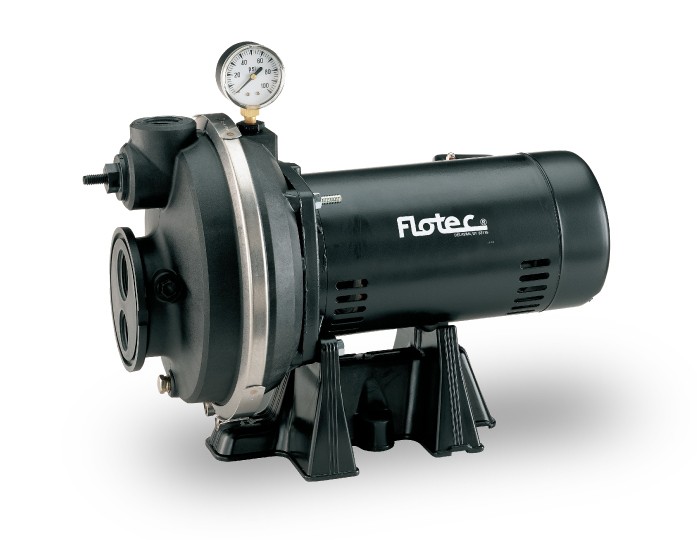

Pentair Flotec FP4322-08 3/4 HP Thermoplastic Convertible Jet Pump

Main Content Starts Here

Pentair Flotec FP4322-08 3/4 HP Thermoplastic Convertible Jet Pump

Corrosion resistant convertible jet pumps are constructed of rugged fiberglass-reinforced thermoplastic, and assure years of dependable service.

KEY FEATURES

  • Superior performance at depths to water of 100' or less
  • Fiberglass-reinforced thermoplastic pump housing for the highest corrosion resistance
  • Ready-to-install 230 volt motor - see manual for 115 volt conversion

WARRANTY

1 year limited warranty

Find out where to purchase online or in a retail location near you.

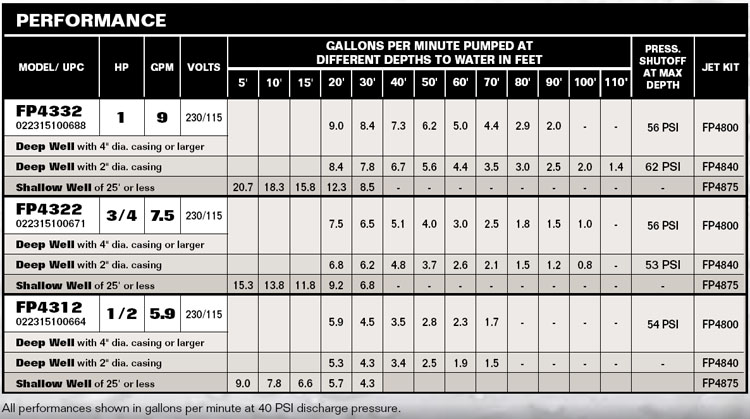

Performance Curves

PerformanceCurves_Thermoplastic Convertible Jet Pump 3/4 HP

Accessories

Specifications

 BODY CONSTRUCTION:   Thermoplastic
HORSEPOWER:  3/4
MAXIMUM CAPACITY:  15.3 GPM (shallow well setup)
FLOW at 10' LIFT and 40 PSI:  13.8 GPM (shallow well setup) /
MAX LIFT:  25' for shallow setup / 100' for 4" deep setup
MAXIMUM PRESSURE:  52 psi for shallow / 66 psi for 4" deep
PRESSURE SWITCH SETTING:  30/50
SUCTION PIPE SIZE:  1-1/4" NPT
DRIVE PIPE SIZE:  1"NPT
DISCHARGE PIPE SIZE:  1" NPT
AMP DRAW (full load):  6.1 amps on 230v / 12.2 amps on 115v
VOLTAGE:  230v / 115v , 60 Hz
RECOMMENDED BREAKER:  15 amp on 230v / 20 amp on 115v
MAXIMUM WATER TEMPERATURE:  140 F (60 C)
