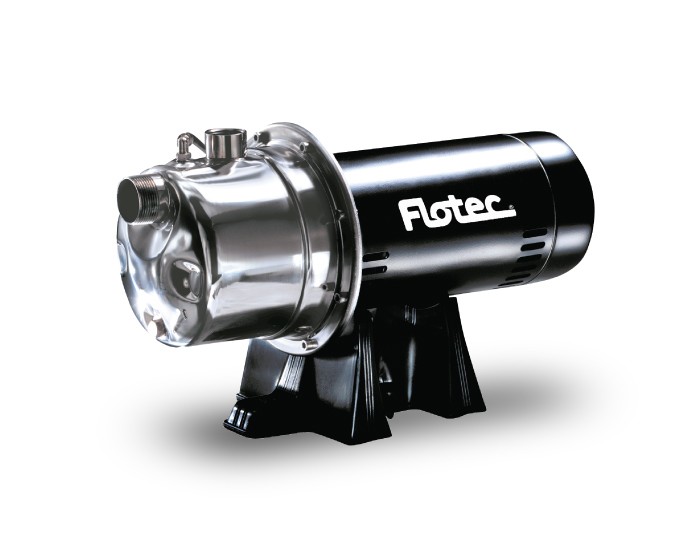

Pentair Flotec FP4822 3/4 HP Stainless Steel Shallow Well Jet Pump

Stainless steel shallow well jet pumps are heavy-duty, durable, corrosion resistant, high pressure and offer efficient non-stop operation for years.

KEY FEATURES

  • Superior performance at depths to water of 25' or less
  • Heavy-duty, stainless steel pump housing for highest corrosion resistance
  • Ready-to-install 230 volt motor - see manual for 115 volt conversion
  • 1-1/4" NPT suction and 1" NPT discharge pipe sizes

WARRANTY

1 year limited warranty

Find out where to purchase online or in a retail location near you.

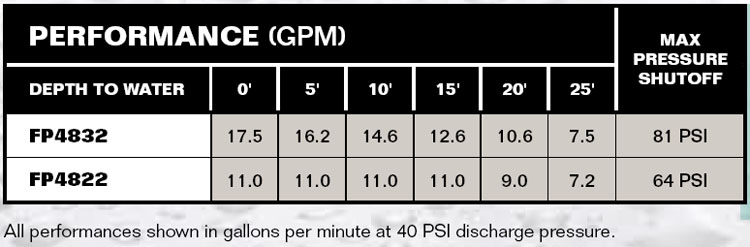

Performance Curve

PerformanceCurves_Stainless Steel Shallow Well Jet Pump 1 HP

Accessories

Resources

Specifications
Resources

BODY CONSTRUCTION:  Stainless Steel
HORSEPOWER:  1
MAXIMUM CAPACITY:  17.5 GPM
FLOW at 10' LIFT and 40 PSI:  14.6 GPM
MAX LIFT:  25'
MAXIMUM PRESSURE:  58 psi
PRESSURE SWITCH SETTING:  30/50
SUCTION PIPE SIZE:  1-1/4" NPT
DISCHARGE PIPE SIZE:  1" NPT
AMP DRAW (full load):  9.6 amps on 230v / 19.2 amps on 115v
VOLTAGE:  230v / 115v, 60Hz
RECOMMENDED BREAKER:  15 amp on 230v / 25 amp on 115v
MAXIMUM WATER TEMPERATURE:  122° F (50° C)

OWNER'S MANUAL:  FP4012-10, FP4022-10, FP4032-10, FP401215H, FP4112-08, FP4122-08, FP4122C, FP4822-08, FP4832-08
Download Manual

PARTS LISTING: FP4822-08, FP4832-08
Download Parts

SPECIFICATIONS: FP4822-08, FP4832-08
Download Specifications

GENERAL JET PUMP RESOURCES
Pressure Switch Adjustment
