Pentair Flotec FP5242 1.5 HP Cast Iron Sprinkler Pump

Cast iron sprinkler pumps are built tough for even the most demanding sprinkler jobs. Strong enough to manage large sprinkler zones with ease.

Key Features

  • Superior performance at depths to water of 25' or less
  • Ideal for larger sprinkler zones or water transfer
  • Rugged, cast iron pump housing
  • Ready-to-install 230 volt motor (dual voltage)

Warranty

1 year limited warranty

Find out where to purchase online or in a retail location near you.
Where to Buy

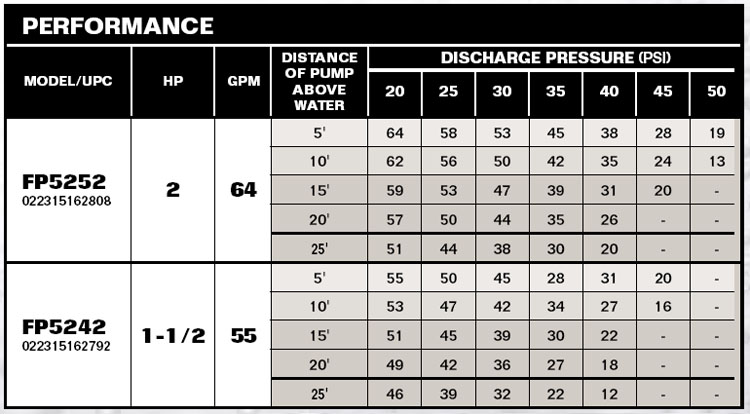

PERFORMANCE CURVES



Specifications

BODY CONSTRUCTION:  Cast Iron
HORSEPOWER:  1-1/2
MAXIMUM CAPACITY:  55 GPM
FLOW AT 10' LIFT and 30 PSI:  42 GPM
MAX LIFT:  25'
MAXIMUM PRESSURE:  47 psi
SUCTION PIPE SIZE:  2" NPT
DISCHARGE PIPE SIZE:  1-1/2" NPT
AMP DRAW (full load):  9.6 amps on 230v / 19.2 amps on 115v
VOLTAGE:  230v / 115v, 60 Hz
RECOMMENDED BREAKER:  15 amp on 230v / 25 amp on 115v
MAXIMUM WATER TEMPERATURE:  140 F (60 C)
