Pentair Flotec FP5522 3/4 HP Cast Iron Centrifugal Pump

Main Content Starts Here

Pentair Flotec FP5522 3/4 HP Cast Iron Centrifugal Pump

Economical, general purpose centrifugal pumps can be used for water transfer, circulation, fountains, waterfalls, pressure boosting and sprinkling.

KEY FEATURES

  • Superior performance at depths to water of 25' or less
  • Rugged, heavy-duty cast iron pump housing
  • Ready-to-install 230 volt motor (dual voltage)

WARRANTY

1 year limited warranty

Find out where to purchase online or in a retail location near you.

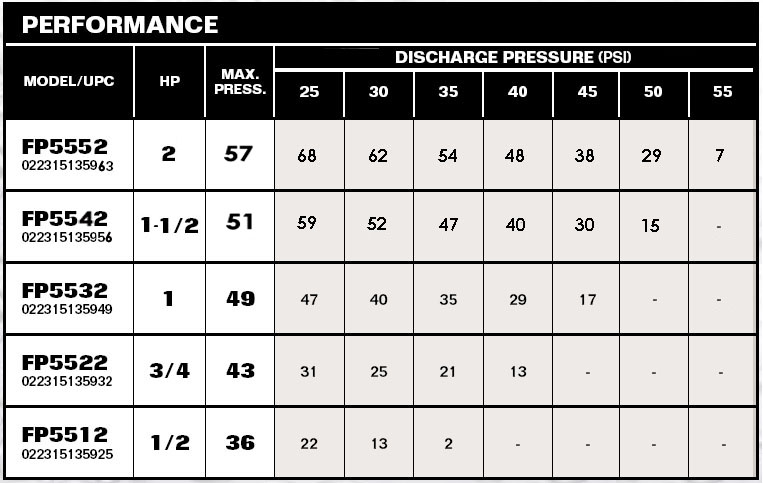

Performance Curves



Accessories

Specifications

BODY CONSTRUCTION:  Cast iron
HORSEPOWER:  3/4
MAXIMUM CAPACITY:  31 GPM
MAX LIFT:  25'
MAXIMUM DISCHARGE PRESSURE:  43 psi
MAXIMUM INLET PRESSURE:
MAXIMUM TOTAL PRESSURE:
SUCTION SIZE:  1-1/4" NPT
DISCHARGE PIPE SIZE:  1"NPT
AMP DRAW:  6.1 amps on 230v / 12.2 amps on 115v
VOLTAGE:  230v / 115v , 60 Hz
RECOMMENDED BREAKER:  15 amp on 230v / 30 amp on 115v
LIQUID TEMP RANGE:  140 °F (60 °C)
