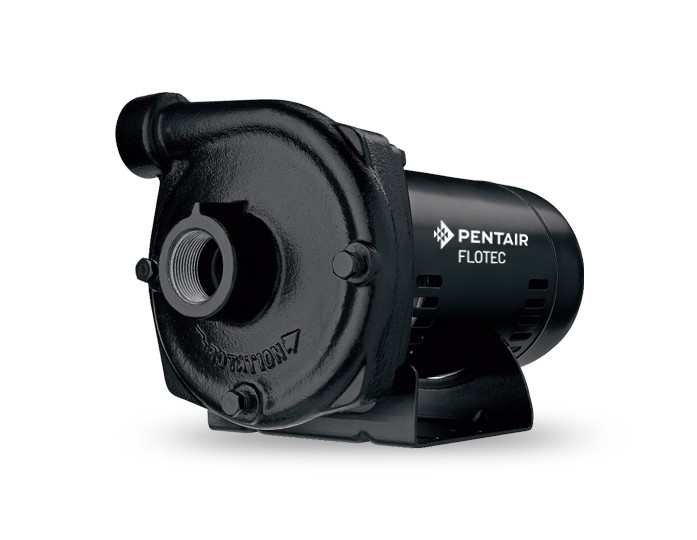

Pentair Flotec FP5532 1 HP Cast Iron Centrifugal Pump

Main Content Starts Here

Pentair Flotec FP5532 1 HP Cast Iron Centrifugal Pump

Economical, general purpose centrifugal pumps can be used for water transfer, circulation, fountains, waterfalls, pressure boosting and sprinkling.

Key Features

  • Superior performance at depths to water of 25' or less
  • Rugged, heavy-duty cast iron pump housing
  • Maximum pumping capacities to 68 GPM
  • Ready-to-install 230 volt motor (dual voltage)

Warranty

1 year limited warranty

Explore purchase options available for this product.
Where to Buy

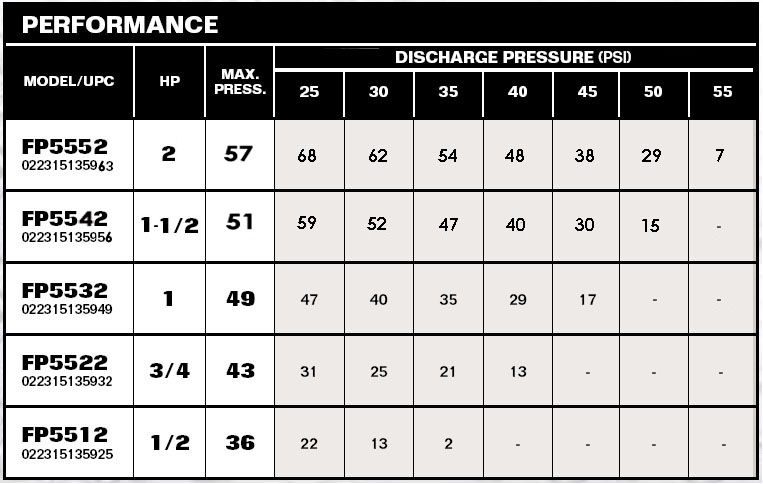

Performance Curves



Specifications

BODY CONSTRUCTION:  Cast Iron
HORSEPOWER:  1
MAXIMUM CAPACITY:  47 GPM
MAXIMUM LIFT:  25'
MAXIMUM DISCHARGE PRESSURE:  49 psi
MAXIMUM INLET PRESSURE:
MAXIMUM TOTAL PRESSURE:
SUCTION PIPE SIZE:  1-1/4" NPT
DISCHARGE PIPE SIZE:  1" NPT
AMP DRAW (full load):  7.4 amps on 230v / 14.8 amps on 115v
VOLTAGE:  230v / 115v , 60 Hz
RECOMMENDED BREAKER:  15 amp for 230v / 20 amp for 115v
LIQUID TEMP RANGE:  140 °F (60 °C)
