Pentair Flotec FP5552 2 HP Cast Iron Centrifugal Pump

Main Content Starts Here

Pentair Flotec FP5552 2 HP Cast Iron Centrifugal Pump

Economical, general purpose centrifugal pumps can be used for water transfer, circulation, fountains, waterfalls, pressure boosting and sprinkling.

KEY FEATURES

  • Superior performance at depths to water of 25' or less
  • Rugged, heavy-duty cast iron pump housing
  • Ready-to-install 230 volt motor (dual voltage)

WARRANTY

1 year limited warranty

Find out where to purchase online or in a retail location near you.
Where to Buy

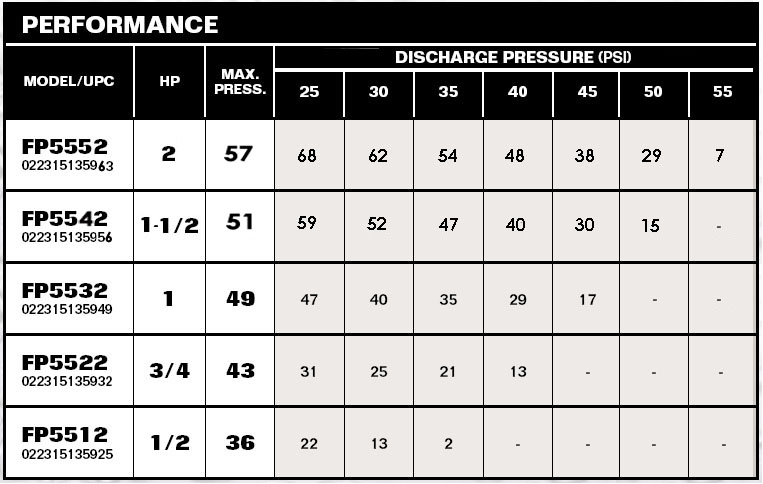

Performance Curves



Specifications

BODY CONSTRUCTION:  Cast Iron
HORSEPOWER:  2
MAXIMUM CAPACITY:  68 GPM
FLOW AT 10' LIFT and 40 PSI:  48 GPM
MAX LIFT:  25'
MAXIMUM PRESSURE:  57 psi
SUCTION PIPE SIZE:  1-1/2" NPT
DISCHARGE PIPE SIZE:  1-1/4" NPT
AMP DRAW:  12 amps on 230v / 24 amps on 115v
VOLTAGE:  230v / 115v, 60 Hz
RECOMMENDED BREAKER:  15 amp on 230v / 30 amp on 115v
MAXIMUM WATER TEMPERATURE:  140 °F (60 °C)
