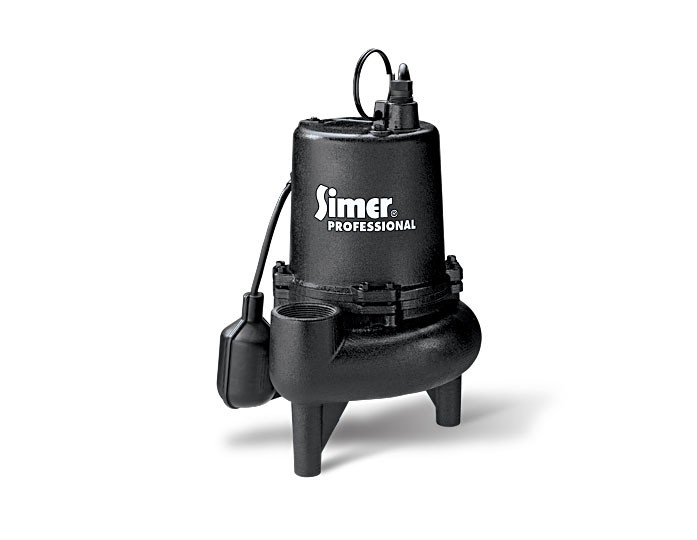

Pentair Simer 5695 Professional Series 3/4 HP Cast Iron Sewage Pump

Our professional grade pumps are designed for the do-it-yourselfer, or the professional plumber.  Constructed of heavy-duty cast iron and powered by an efficient PSC (Permanent Split Capacitor) motor, these pumps are ready to work.

KEY FEATURES

  • Rugged cast iron construction
  • Energy-efficient PSC motor
  • Tethered float switch
  • Handles up to 2" solids
  • Includes 10' power cord

WARRANTY

5-year limited warranty

Explore purchase options available for this product.
Where to Buy

Performance Curves

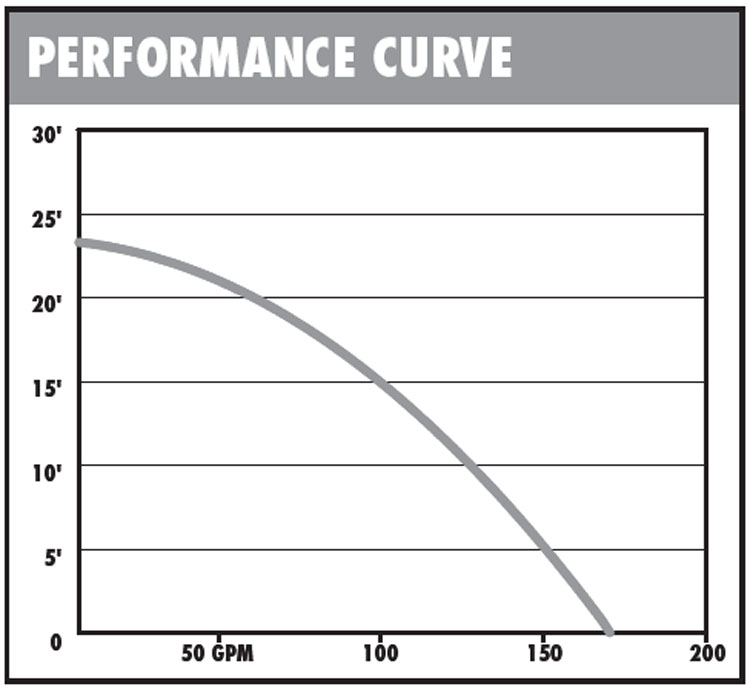

Performance curve showing flow rate (GPM) decreasing as discharge height increases for Pump Model 5965.

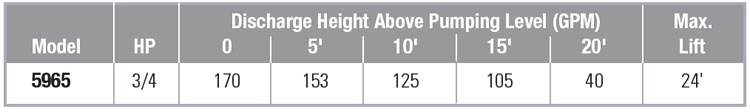

Data table showing Model 5965 pump specifications, including 3/4 HP and flow rates at discharge heights from 0 to 20 feet, with a maximum lift of 24 feet.

Specifications

BODY CONSTRUCTION:  Cast Iron

HORSEPOWER:  3/4 HP

MAXIMUM HEAD:  24'

MAXIMUM CAPACITY:  10,200 GPH

FLOW at 10' LIFT:  7,500 GPH (28,391 L)

SWITCH TYPE:  Tethered

MINIMUM SUMP DIAMETER:  18"

MINIMUM SUMP DEPTH:  30"

DISCHARGE PIPE SIZE:  2"

MAXIMUM SOLIDS HANDLING SIZE:  2" spherical

AMP DRAW:  9 amps

CORD LENGTH:  10'

VOLTAGE:  115v 60 Hz
