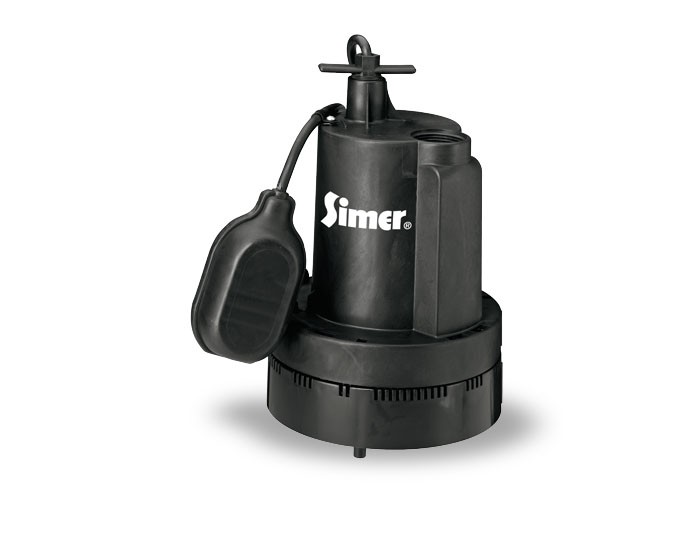

Pentair Simer 2955-04 1/3 HP Thermoplastic Submersible Sump Pump

Durable thermoplastic sump pump is designed for use in basement sumps.

Key Features

  • Tough thermoplastic construction
  • Tethered style float switch allow longer run cycles

Warranty

2-year limited warranty

Find out where to purchase online or in a retail location near you.

Performance Curves

PerformanceCurves_1/3 HP Thermoplastic Submersible Sump Pump, Tethered Switch

Accessories

Specifications

BODY CONSTRUCTION:  Thermoplastic

HORSEPOWER:  1/3 HP

MAXIMUM HEAD:  25'

MAXIMUM CAPACITY:  2160 GPH

FLOW AT 10' LIFT:  1620 GPH

SWITCH TYPE:  Tethered

SWITCH ON LEVEL:  11"

SWITCH OFF LEVEL:  4"

MINIMJM SUMP DIAMETER:  14"

MINIMUM SUMP DEPTH:  14"

DISCHARGE PIPE SIZE:  1-1/4" MNPT

MINIMUM PIPE SIZE:  1-1/4"

MAXIMUM SOLID HANDLING:  1/4"

AMP DRAW:  10 amps

CORD LENGTH:  8'

VOLTAGE:  115v AC, 60 Hz

RECOMMENDED BREAKER:  15 amps

MAXIMUM WATER TEMPERATURE:  120°F (49°C)
