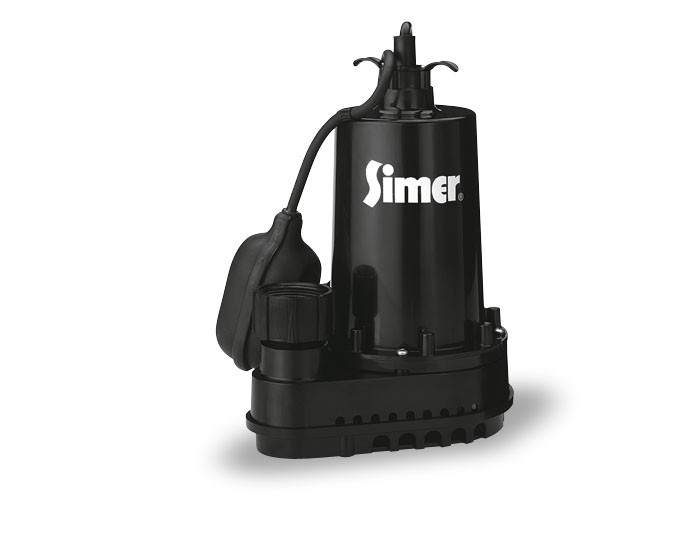

Pentair Simer 2975PC-03 1/2 HP Thermoplastic Submersible Sump Pump

Main Content Starts Here

Pentair Simer 2975PC-03 1/2 HP Thermoplastic Submersible Sump Pump

Submersible sump pump with tethered float for use in home sump pit

Key Features

  • Strong thermoplastic construction
  • Tethered float switch extends run and "rest" cycles

Warranty

3-year limited warranty

Find out where to purchase online or in a retail location near you.

Performance Curves

PerformanceCurves_1/2 HP Thermoplastic Submersible Sump Pump, Tethered Switch

Accessories

Specifications

BODY CONSTRUCTION:  Thermoplastic

HORSEPOWER:  1/2 HP

MAXIMUM HEAD:  24' (7.3m)

MAXIMUM CAPACITY:  2580 GPH

FLOW AT 10' LIFT:  1800 GPH

SWITCH TYPE:  Tethered

SWITCH ON LEVEL:  14"

SWITCH OFF LEVEL:  7"

MINIMUM SUMP DIAMETER:  12"

MINIMUM SUMP DEPTH:  16"

MAXIMUM SOLDS HANDLING:  1/4"

AMP DRAW:  9.5 amps at max flow

CORD LENGTH:  8'

VOLTAGE:  115v AC, 60 Hz

RECOMMENDED BREAKER:  15 amps

LIQUID TEMP RANGE:  32°F-120°F (0°-50°C)
