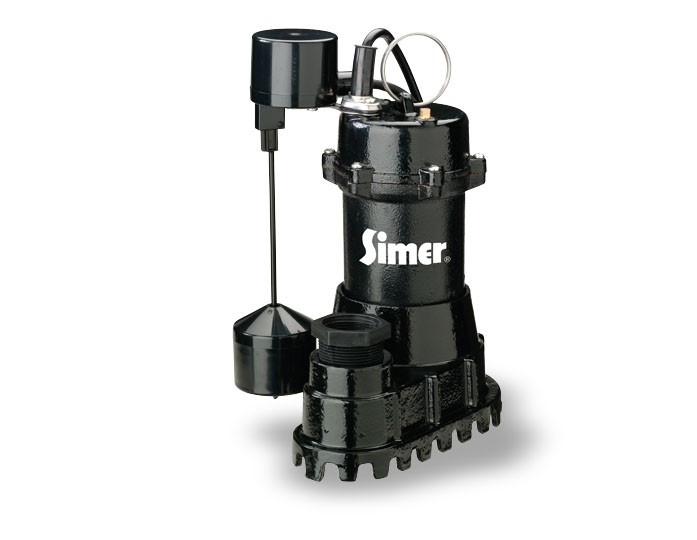

Pentair Simer 3884-01 1/2 HP Cast Iron Submersible Sump Pump

This Submersible Sump Pump is designed for home sumps. Unit is equipped with a 3-prong grounding-type power cord.  haded-pole motor is sealed for cooler running.

Key Features

  • Rugged cast iron construction
  • Vertical float switch allows installation in fairly narrow pits

Warranty

1-year limited warranty

Find out where to purchase online or in a retail location near you.

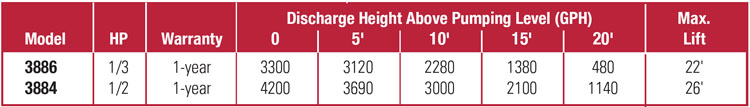

Performance Curves

PerformanceCurves_1/2 HP Cast Iron Submersible Sump Pump, Vertical Switch

Accessories

Specifications

BODY CONSTRUCTION:  Cast Iron

HORSEPOWER:  1/2 HP

MAXIMUM HEAD:  26' (7.9m)

MAXIMUM CAPACITY:  4200 GPH

FLOW AT 10' LIFT:  3000 GPH

SWITCH TYPE:  Vertical

SWITCH ON LIEVEL:  6-3/4"

SWITCH OFF LEVEL:  3-1/4"

MINIMUM SUMP DIAMETER:  1/4"

MINIMUM SUMP DEPTH:  14"

DISCHARGE PIPE SIZE:  16"

MINIMUM PIPE SIZE:  1½" Female NPT

MAXIMUM SOLID HANDLING:  1-1/4"

AMP DRAW:  4.7 amps

CORD LENGTH:

VOLTAGE:  115v AC, 60 Hz

RECOMMENDED BREAKER:  15 amp

LIQUID TEMP RANGE:  32°F to 70°F(0°-21°C)
