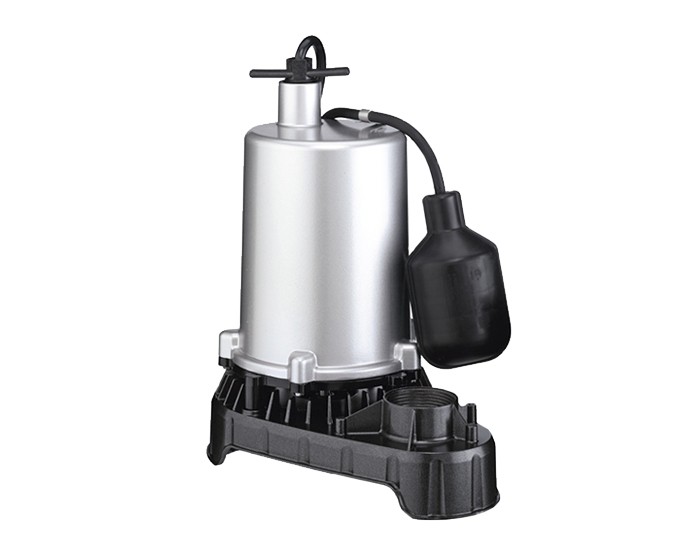

Pentair Simer 4185 1/2 HP Zinc Body Submersible High Output Sump Pump

Main Content Starts Here

Pentair Simer 4185 1/2 HP Zinc Body Submersible High Output Sump Pump

This tethered version of the ½ HP pump offers a highly engineered, reliable product, moving up to 6,000 gallons per hour! This pump fits into a sump basin 14” in or wider.

KEY FEATURES

  • Corrosion Resistant Zinc Construction - Dissipates heat quickly and extends motor life
  • Uni-Body Motor Housing - Eliminates leak points and maximizes pump life
  • Stainless Steel Fasteners and Hardware  - Superior quality
  • Quadra SealTM Technology - Provides superior motor protection over single seal designs
  • Smooth Flow HydraulicsTM - Deliver high performance for demanding applications
  • Tethered Float Switch - Operates in 14” basins or larger

WARRANTY

3-year Limited Warranty

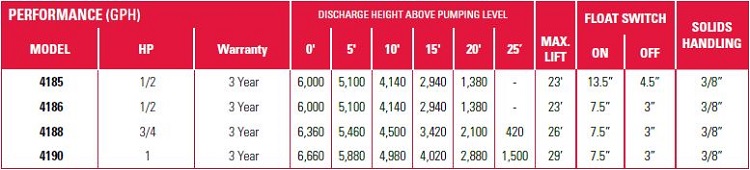

Performance Curves

PerformanceCurves_1/2 HP Zinc Body Submersible High Output Sump Pump, Tethered Switch

Specifications

BODY CONSTRUCTION:  Zinc
MAXIMUM CAPACITY:  6,000 GPH
HORSEPOWER:  1/2
FLOW at 10' LIFT:  4,140 GPH
SWITCH TYPE:  Tethered Float
SWITCH 'ON' LEVEL:  13-1/2"
SWITCH 'OFF' LEVEL:  4-1/2"
MINIMUM SUMP DIAMETER:  14"
DICHARGE PIPE SIZE:  1 1/2" NPT
MAXIMUM SOLIDS HANDLING SIZE:  3/4"
CORD LENGTH:  8'
VOLTAGE:  115v AC, 60 Hz
