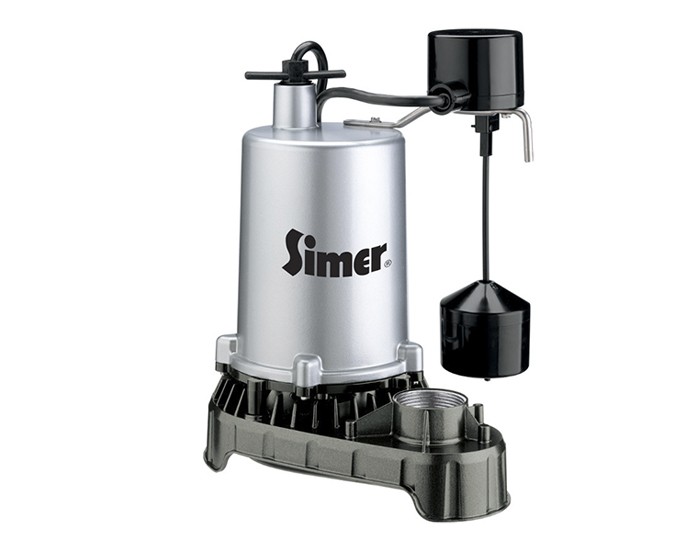

Pentair Simer 4188 3/4 HP Zinc Body Submersible High Output Sump Pump

Main Content Starts Here

Pentair Simer 4188 3/4 HP Zinc Body Submersible High Output Sump Pump

This pump offers our highly engineered sump pump design, along with high-output performance – achieving over 6,300 gallons per hour! A great option for very active sump pits.

KEY FEATURES

  • Corrosion Resistant Zinc Construction - Dissipates heat quickly and extends motor life
  • Uni-Body Motor Housing - Eliminates leak points and maximizes pump life
  • Stainless Steel Fasteners and Hardware - Superior quality
  • Quadra SealTM Technology - Provides superior motor protection over single seal designs
  • Smooth Flow HydraulicsTM - Deliver high performance for demanding applications
  • Vertical Float Switch - Operates in 10” basins or larger

WARRANTY

3-year limited warranty

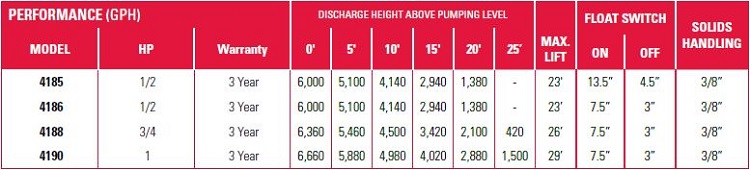

Performance Curves

PerformanceCurves_3/4 HP Zinc Body Submersible High Output Sump Pump, Vertical Switch

Specifications

BODY CONSTRUCTION:  Zinc
HORSEPOWER:  3/4
MAXIMUM CAPACITY:  6,360 GPH
FLOW at 10' LIFT:  4,500 GPH
SWITCH TYPE:  Vertical Float
FLOAT SWITCH 'ON' LEVEL:  7-1/2"
FLOAT SWITCH 'OFF' LEVEL:  3"
MINIMUM SUMP DIAMETER:  10"
DISCHARGE PIPE SIZE:  1 1/2” NPT
MAXIMUM SOLIDS HANDLING SIZE:  3/8"
CORD LENGTH:  8'
VOLTAGE:  115 VAC, 60 Hz.
