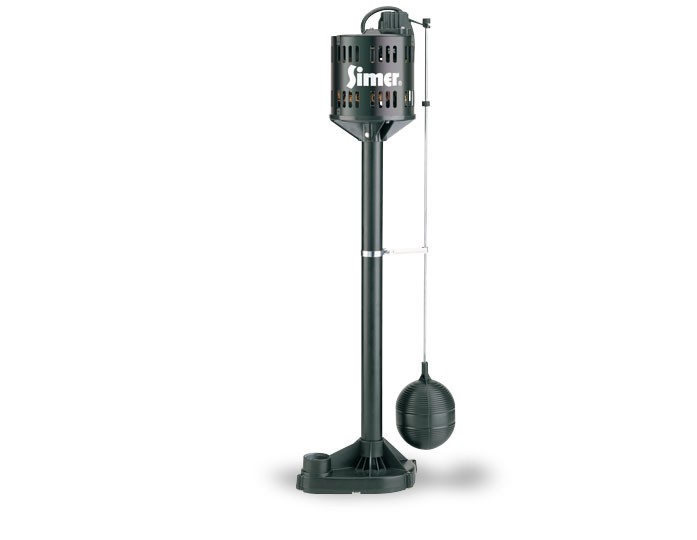

Pentair Simer 5020B-04 1/3 HP Thermoplastic Pedestal Sump Pump

Main Content Starts Here

Pentair Simer 5020B-04 1/3 HP Thermoplastic Pedestal Sump Pump

The Simer® Pedestal Sump Pumps are constructed of durable thermoplastic and are easy to install.

Key Features

  • Sturdy thermoplastic construction
  • Simple installation

Warranty

1-year limited warranty

Find out where to purchase online or in a retail location near you.

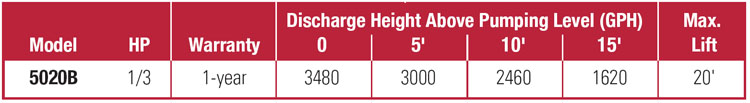

Performance Curves

PerformanceCurves_1/3 HP Thermoplastic Pedestal Sump Pump

Specifications

Item #Horsepower
5020B1/3
Item #Horsepower
5020B1/3

BODY CONSTRUCTION:  Thermoplastic

HORSEPOWER:  1/3 HP

MAXIMUM HEAD:  20' (6.09M)

MAXIMUM CAPACITY:  3480 GPH

FLOW AT 10' LIFT:  2460 GPH

SWITCH TYPE:  Vertical

SWITCH ON LEVEL:  10" - 12" (user adjustable)

SWITCH OFF LEVEL:  2-1/2"

MINIMUM SUMP DIAMETER:  12"

MINIMUM SUMP DEPTH:  15"

DISCHARGE PIPE SIZE:  1-1/4" NPT

MINIMUM PIPE SIZE:  1-1/4"

MAXIMUM SOLIDS HANDLING:  1/4"

AMP DRAW:  3-1/2 amps at max flow

CORD LENGTH:

VOLTAGE:  115v AC, 60 Hz

RECOMMENDED BREAKER:  15 amp

MAXIMUM LIQUID TEMPERATURE:  70°F (21°C)
