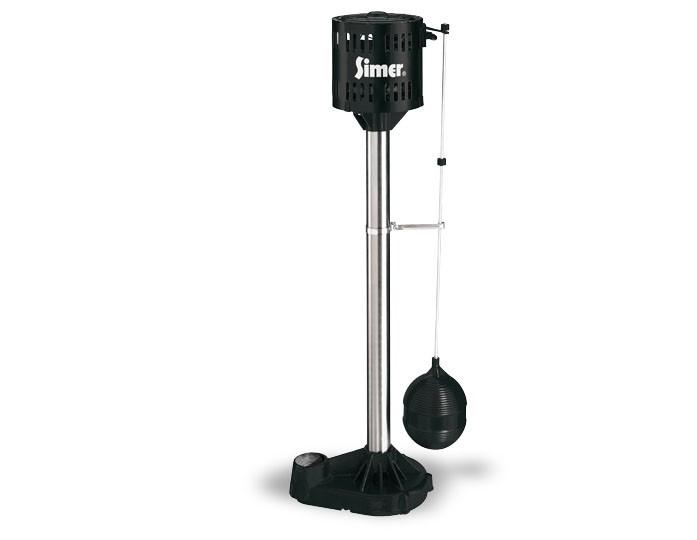

Pentair Simer 5023SS 1/3 HP Cast Iron/Stainless Steel Pedestal Sump Pump

These Simer Pedestal Sump Pumps are constructed of tough cast iron and stainless steel and are easy to install.

Key Features

  • Rugged cast iron base
  • Corrosion-resistant stainless steel column
  • Energy-efficient motor

Warranty

2-year limited warranty

Find out where to purchase online or in a retail location near you.

Performance Curves

PerformanceCurves_1/3 HP Cast Iron/Stainless Steel Pedestal Sump Pump

Accessories

Specifications

Item #Horsepower
5023SS1/3
Item #Horsepower
5023SS1/3

BODY CONSTRUCTION:  Cast Iron Base / Stainless Steel Column
HORSEPOWER:  1/3 HP
MAXIMUM HEAD:  20' (6.09M)
MAXIMUM CAPACITY:  3480 GPH
FLOW AT 10' LIFT:  2460 GPH
SWITCH TYPE:  Vertical
SWITCH ON LEVEL:  10-1/2" (user adjustable)
SWITCH OFF LEVEL:  2-1/2"
MINIMUM SUMP DIAMETER:  12"
MINIMUM SUMP DEPTH:  12"
DISCHARGE PIPE SIZE:  1-1/2" FNPT
MINIMUM PIPE SIZE:  1-1/4"
MAXIMUM SOLIDS HANDLING:  1/4"
AMP DRAW:  3.5 Amps
VOLTAGE:  115V, 60 HZ
RECOMMENDED BREAKER:  15 Amps
MAXIMUM WATER TEMPERATURE:  70°F (21°C)
