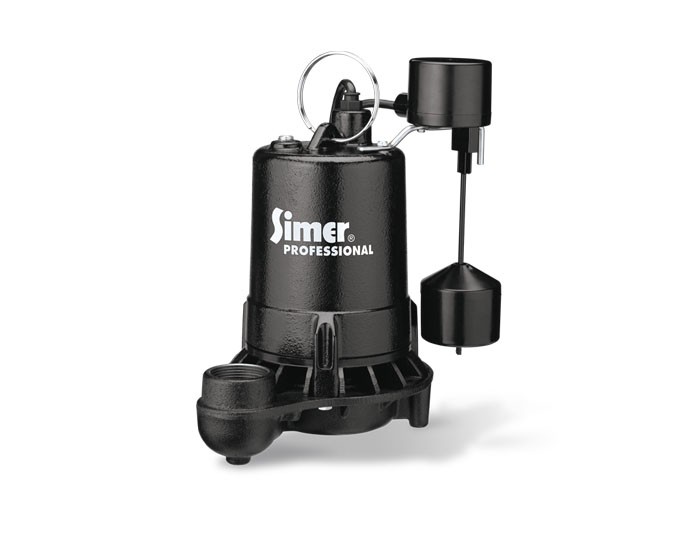

Pentair Simer 5955 1/2 HP Professional Grade Sump Pump

Tough cast iron surrounding the energy-efficient PSC motor combine to make the Simer Professional Series sump pumps some of the finest in the industry.  Designed for professional plumbers and installers, or for homeowners who demand the best.

KEY FEATURES

  • Rugged construction
  • Vertical float switch
  • Professional performance

WARRANTY

5-year limited warranty

Find out where to purchase online or in a retail location near you.

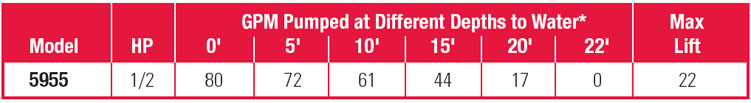

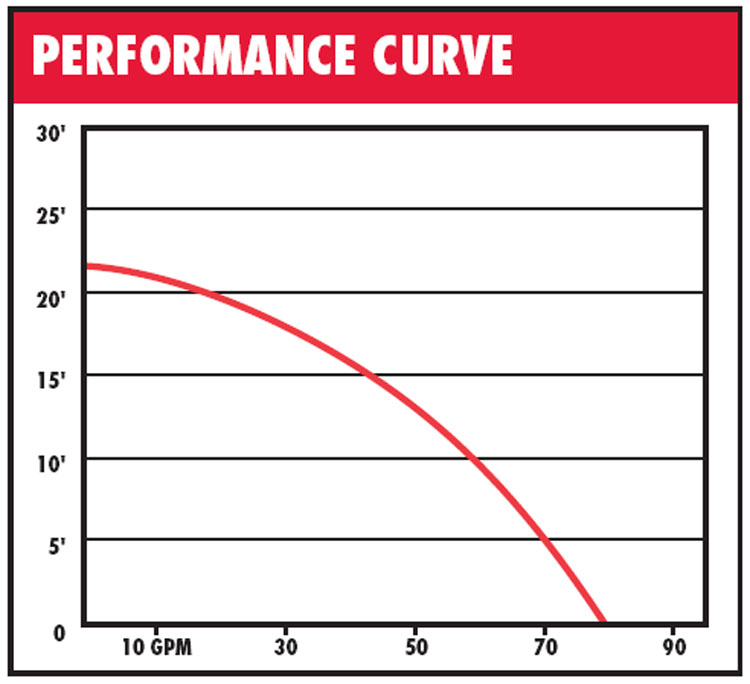

Performance Curves




Accessories

SPECIFICATIONS
RESOURCES

BODY CONSTRUCTION:  Cast Iron
MAXIMUM HEAD:  22'
MAXIMUM CAPACITY:  4,320 GPH
FLOW at 10' LIFT:  3,660 GPH
SWITCH TYPE:  Vertical Float
SWITCH 'ON' LEVEL:  7-1/2"
SWITCH 'OFF' LEVEL:  3"
MINIMUM SUMP DIAMETER:  10"
DISCHARGE PIPE SIZE:  1-1/2” Female NPT
AMP DRAW (full load):  6.9 Amps
CORD LENGTH:  10'
VOLTAGE:  115V, 60 HZ
MAXIMUM WATER TEMPERATURE:  70°F (21°C)

OWNER'S MANUAL: 5950, 5955, 5975
Download Manual

SPECIFICATIONS: 5955
Download Specs
