Pentair Simer 5965 Professional Series 3/4 HP Cast Iron Sewage Pump

Our professional grade pumps are designed for the do-it-yourselfer, or the professional plumber.  Constructed of heavy-duty cast iron and powered by an efficient PSC (Permanent Split Capacitor) motor, these pumps are ready to work.

Key Features

  • Rugged cast iron construction
  • Energy-efficient PSC motor
  • Tethered float switch
  • Handles up to 2" solids
  • Includes 10' power cord

Warranty

5-year limited warranty

Find out where to purchase online or in a retail location near you.
Where to Buy

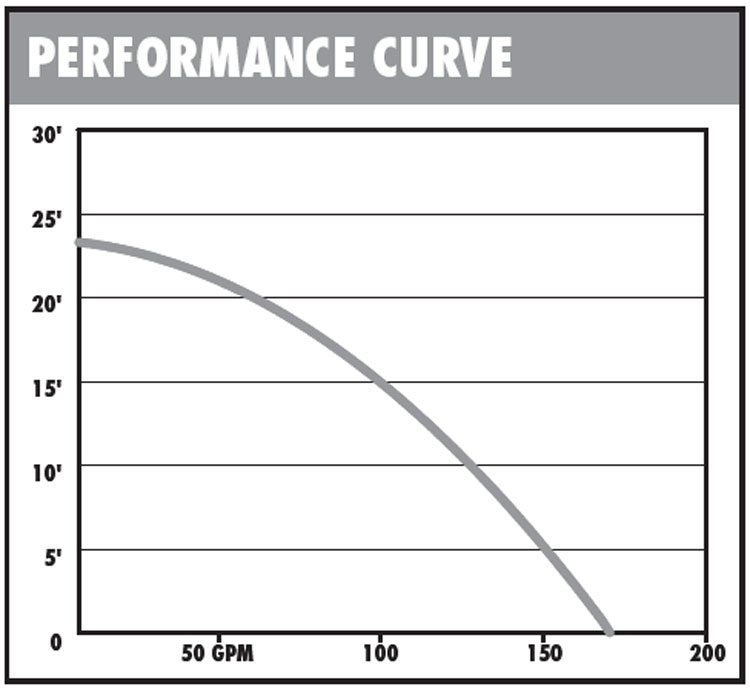

Performance Curves

PerformanceCurves_Professional Series 3/4 HP Cast Iron Sewage Pump

Specifications

Item #Horsepower
59653/4
Item #Horsepower
59653/4
Show less

BODY CONSTRUCTION:  Cast Iron
MAXIMUM HEAD:  24'
MAXIMUM CAPACITY:  10,200 GPH
FLOW at 10' LIFT:  7,500 GPH (28,391 L)
SWITCH TYPE:  Tethered
MINIMUM SUMP DIAMETER:  18"
MINIMUM SUMP DEPTH:  30"
DISCHARGE PIPE SIZE:  2"
MAXIMUM SOLIDS HANDLING SIZE:  2" spherical
AMP DRAW:  9 amps
CORD LENGTH:  10'
VOLTAGE:  115v 60 Hz
