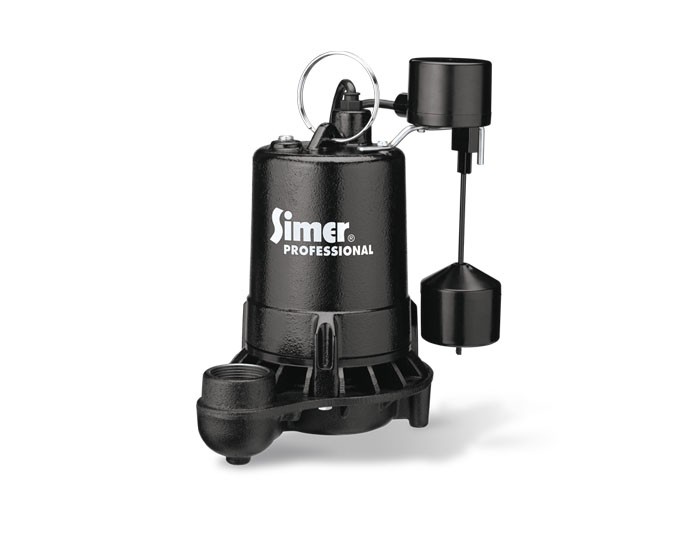

Pentair Simer 5975 3/4 HP Professional Grade Cast Iron Sump Pump

Main Content Starts Here

Pentair Simer 5975 3/4 HP Professional Grade Cast Iron Sump Pump

Our professional grade sump pumps are designed for the do-it-yourselfer, or the professional plumber who demands the best.  Using heavy duty cast iron construction and an energy-efficient PSC (Permanent Split Capacitor) you can rely on these pumps

KEY FEATURES

  • Energy efficient PSC motor
  • Rugged cast iron construction
  • Space-saving vertical float switch
  • Professional performance
  • 10' power cord
  • 1-1/2" discharge

WARRANTY

5-year limited warranty

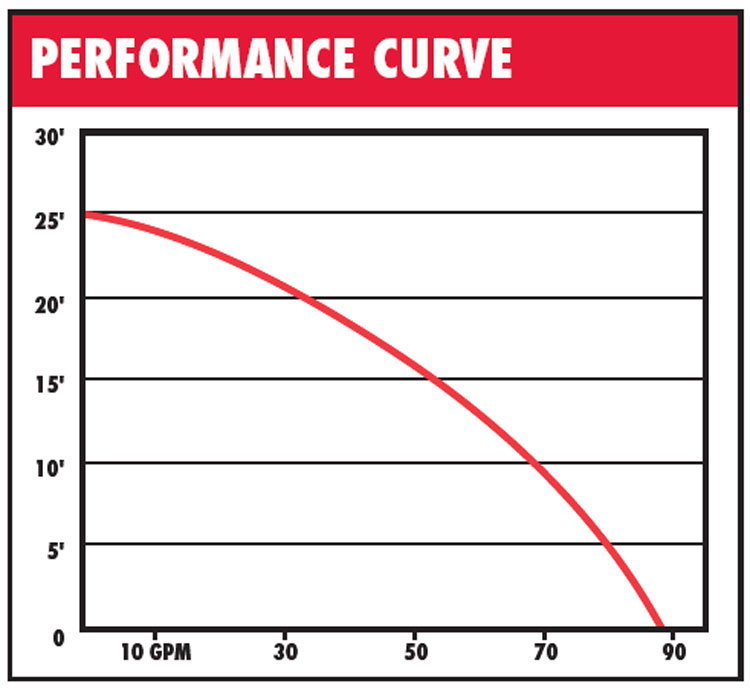

Performance Curves

PerformanceCurves_Professional Grade 3/4 HP Cast Iron Sump Pump
PerformanceCurves_Professional Grade 3/4 HP Cast Iron Sump Pump

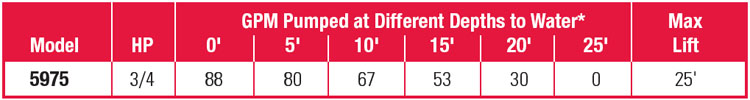

Specifications

Item #Horsepower
59753/4
Item #Horsepower
59753/4

BODY CONSTRUCTION:  Cast Iron
HORSEPOWER:  3/4 HP
MAXIMUM HEAD:  25'
MAXIMUM CAPACITY:  5,280 GPH
FLOW at 10' LIFT:  4,020 GPH
SWITCH TYPE:  Vertical Float
SWITCH 'ON' LEVEL:  7-1/2"
SWITCH 'OFF' LEVEL:  3"
MINIMUM SUMP DIAMETER:  10" (254mm)
MINIMUM SUMP DEPTH:  10" (254mm)
DISCHARGE PIPE SIZE:  1-1/2” Female NPT
AMP DRAW:  7 amps
CORD LENGTH:  10'
VOLTAGE:  115v AC, 60 Hz
MAXIMUM LIQUID TEMPERATURE:  70°F (21°C)
