Pentair Flotec FP3232 1 HP 3-Wire 4 Inch Submersible Well Pump

4" Submersible Pumps are the most economical, energy-efficient pumps for 4" wells or larger. They provide the optimum amount of water and pressure for general home and farm use.

KEY FEATURES

  • For 4" inside diameter or larger wells
  • Pumps from depths of 300ft
  • Floating Stack Design for sand resistance and reduced sand locking
  • Corrosion-resistant stainless steel pump and motor housing

WARRANTY

3 year limited warranty

Find out where to purchase online or in a retail location near you.

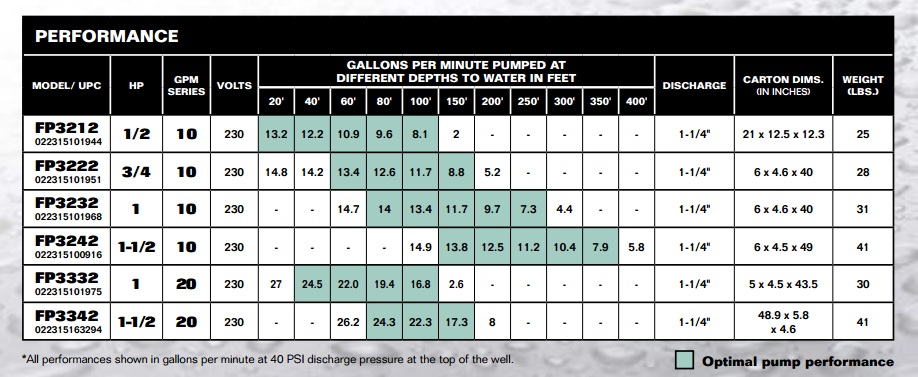

Performance Curves

PerformanceCurves_3-Wire 4 Inch Submersible Well Pump, 230 Volts 1 HP, 10 GPM

Accessories

Specifications
Resources

HORSEPOWER:  1

PERFORMANCE SERIES:  10 GPM

VOLTAGE:  230v, 60 Hz

NUMBER OF WIRES:  3 plus ground

BODY CONSTRUCTION:  Stainless Steel

MAXIMUM CAPACITY:  15.6 GPM

OPERATING RANGE:  60' to 300'

MAXIMUM DEPTH-TO-WATER:  300'

MAX PSI:  170 psi

PUMP DIAMETER:  3.78"

DISCHARGE PIPE SIZE:  1-1/4" NPT

OWNER'S MANUAL: FP2211, FP2212, FP2222, FP2232, FP3212, FP3222, FP3232, FP3332

Download Manual

SPECIFICATIONS: 4" SUBMERSIBLES, 3-WIRE

Download Specs
