Pentair Flotec FP3242 1.5 HP 3-Wire 4 Inch Submersible Well Pump

4" Submersible Pumps are the most economical, energy-efficient pumps for 4" wells or larger. They provide the optimum amount of water and pressure for general home and farm use.

KEY FEATURES

  • For 4" inside diameter or larger wells
  • Pumps from depths of 400ft
  • Floating Stack Design for sand resistance and reduced sand locking
  • Corrosion-resistant stainless steel pump and motor housing

WARRANTY

3 year warranty

Find out where to purchase online or in a retail location near you.

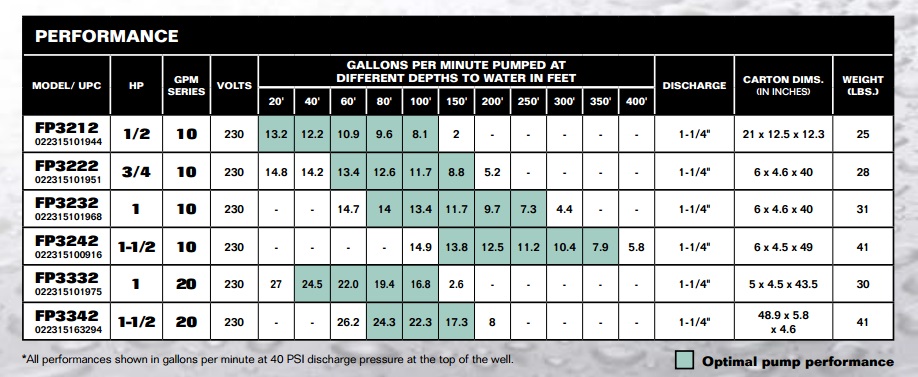

Performance Curves

PerformanceCurves_3-Wire 4 Inch Submersible Well Pump, 230 Volts 1.5 HP, 10 GPM

Accessories

Specifications

HORSEPOWER:  1-1/2
PERFORMANCE SERIES:  10 GPM
VOLTAGE:  230v, 60 Hz
NUMBER OF WIRES:  3 plus ground
BODY CONSTRUCTION:  Stainless Steel
MAXIMUM CAPACITY:  16 GPM
OPERATION RANGE:  100' to 400'
MAXIMUM DEPTH-TO-WATER:  400'
MAX PSI:  170 psi
PUMP DIAMETER:  3.78"
DISCHARGE PIPE SIZE:  1-1/4"
