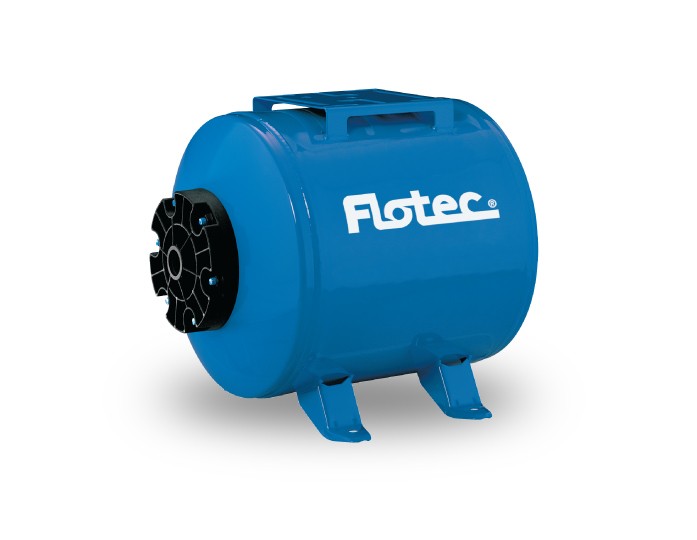

Pentair Flotec FP7100H 15 Gallon Pre-Charged Pressure Tank (Horizontal)

Pre-charged pressure tanks require 50% less space than standard conventional tanks while providing greater water capacity between pump cycles for maximum system life.

KEY FEATURES

  • Convenient size for cabins and summer homes
  • Tough, appliance-like finish for extended life
  • Heavy gauge steel construction for maximum durability
  • Replaceable air/water separator for easy maintenance

WARRANTY

5 year limited warranty

Find out where to purchase online or in a retail location near you.

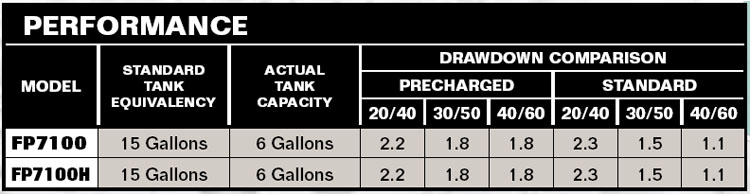

Performance Curves

PerformanceCurves_Pre-Charged Pressure Tank (Horizontal) - 15 Gallons

Specifications

BODY CONSTRUCTION:  Heavy Gauge Steel
BODY FINISH:  Electrostatically Applied Baked-On Polyester
TANK PRECHARGE:  40 psi Nitrogen-Rich charge
TANK CAPACITY:  6 gal
EQUIVALENCY RATING:  15 gal
DRAWDOWN WITH 20/40 SWITCH:  2.2 gal
DRAWDOWN WITH 30/50 SWITCH:  1.8 gal
DRAWDOWN WITH 40/60 SWITCH:  1.8 gal
BLADDER / WATER CELL:  One-Piece Seamless PVC
TANK DIAMETER:  12"
TANK HEIGHT:  14"
FLANGE:  Glass-Filled Polypropylene
PIPE TAP SIZE:  3/4" NPT
MAXIMUM PRESSURE RATING:  100 PSI
