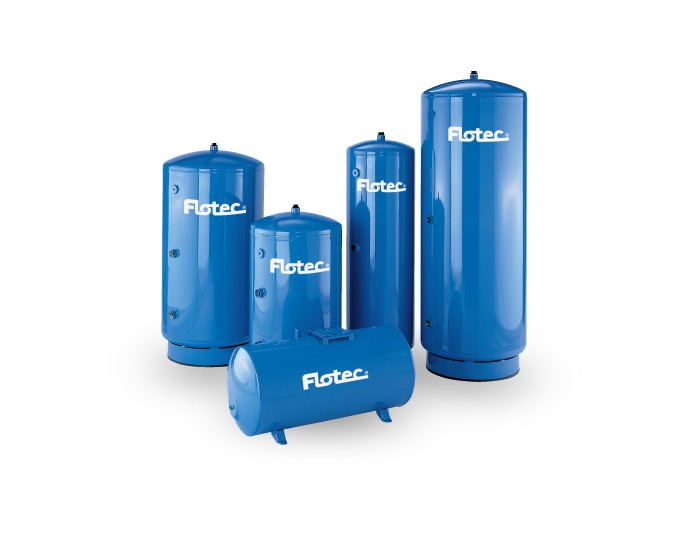

Pentair Flotec FP7240 85 Gallon Air-Over-Water Pressure Tank (Vertical)

Main Content Starts Here

Pentair Flotec FP7240 85 Gallon Air-Over-Water Pressure Tank (Vertical)

Epoxy-lined standard water tanks are excellent corrosion resistant tanks for home water systems applications such as retention tank, holding tank and pressure tank.

Key Features

  • Replaces any standard galvanized, glass-lined or epoxy-lined tank
  • Precision press fit design minimizes gaps between components, reducing the possibility of corrosion and seam leaks
  • Tough polyester exterior paint. Air volume control tap is standard

Warranty

1 year limited warranty

Find out where to purchase online or in a retail location near you.

Performance Curves

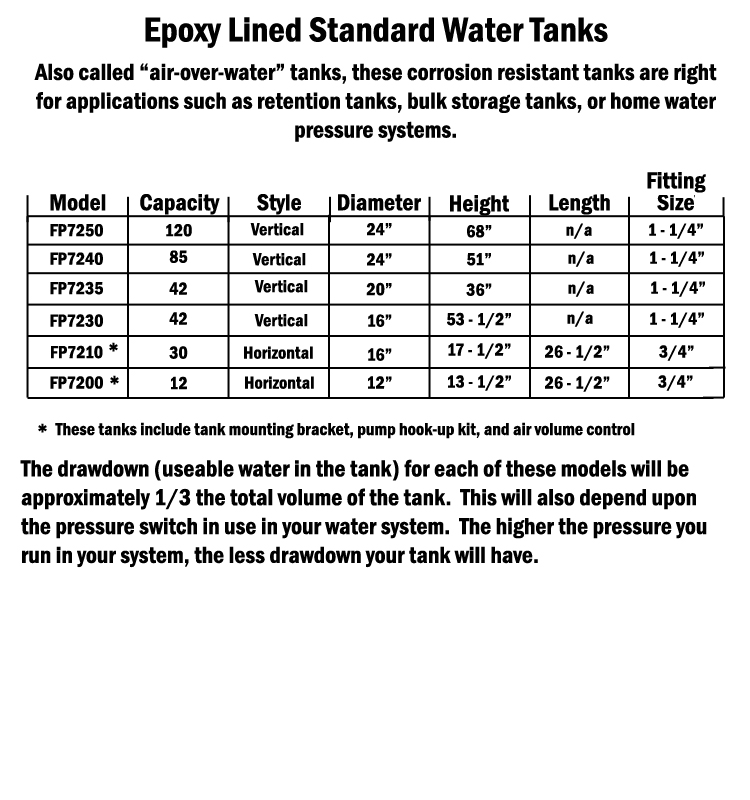

Specifications
Resources

BODY CONSTRUCTION:  Heavy Gauge Steel

BODY FINISH:  Electrostatically 'applied Baked On Polyester

STYLE:  Upright Vertical

TANK CAPACITY:  85 gallons

TANK DIAMETER:  24"

TANK HEIGHT:  51"

OWNER'S MANUAL: FP7210, FP7230, FP7235, FP7240, FP7250

SPECIFICATIONS: FP7240-00, FP7250-00

ACCESSORIES: TANKS
