Pentair Flotec FP401215H-10 1/2 HP Thermoplastic Jet/Tank System

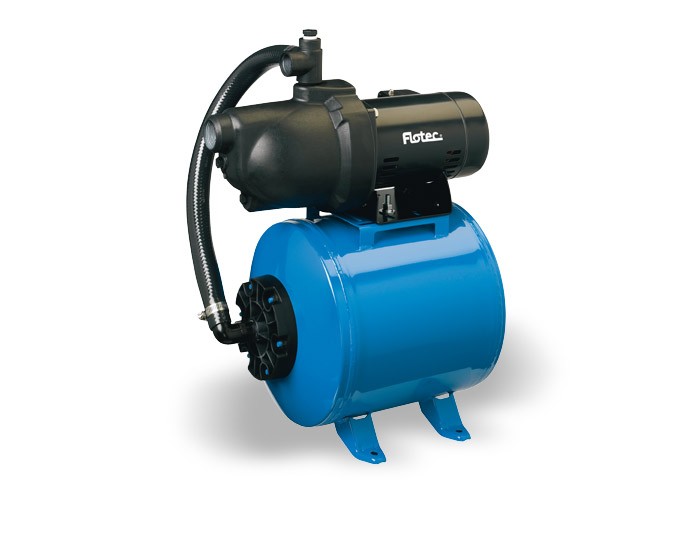

Corrosion-resistant shallow well jet/tank system is ideal for compact installations where space is at a premium. Pump comes already mounted on tank.

KEY FEATURES

  • Superior performance at depths to water of 25' or less
  • Maximum pumping capacities up to 8 GPM at 40 PSI
  • Pre-charged 15 gallon tank is more efficient than conventional tanks of the same physical size, because it delivers up to twice the amount of water between pump cycles
  • Rugged construction of heavy gauge steel with baked-on finish on outside for maximum corrosion resistance

WARRANTY

1 year limited warranty

Find out where to purchase online or in a retail location near you.

Performance Curves

PerformanceCurves_Thermoplastic Jet/Tank System 1/2 HP

Accessories

Resources

OWNER'S MANUAL
Download Jet Manual
Download Tank Manual

PARTS LISTING
Download Parts

SPECIFICATIONS
Download Specifications

GENERAL JET PUMP RESOURCES
Pressure Switch Adjustment

Specifications

BODY CONSTRUCTION: Thermoplastic
MAX LIFT: 25'
PRESSURE SWITCH SETTING: 30/50
Suction Pipe Size: 1-1/4" NPT
DISCHARGE PIPE SIZE: 1" NPT
MAXIMUM WATER TEMPERATURE: 120°F (49°C)
TANK DRAWDOWN: .6 Gal
Item #Horse PowerMAXIMUM CAPACITYFLOW at 10-foot LIST and 40 PSIMAX PRESSUREAmps (Max)VoltageRECOMMENDED BREAKER
FP401215H-101/28 GPM6.4 GPH77 psi9.4 amps115v/230v, 60 Hz (factory preset to 115v)115V: 15 Amp / 230V: 15 Amp
Item #Horse PowerMAXIMUM CAPACITYFLOW at 10-foot LIST and 40 PSIMAX PRESSUREAmps (Max)VoltageRECOMMENDED BREAKER
FP401215H-101/28 GPM6.4 GPH77 psi9.4 amps115v/230v, 60 Hz (factory preset to 115v)115V: 15 Amp / 230V: 15 Amp
