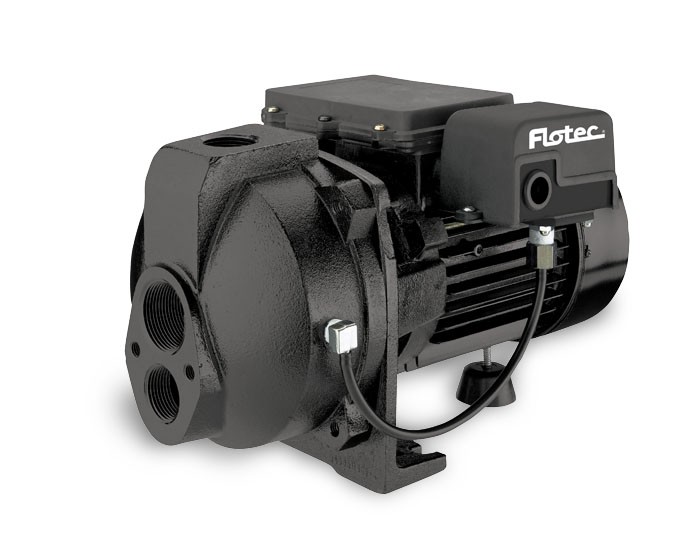

- Pentair Flotec FP4205 1/2 HP Cast Iron Convertible Deep Well Jet Pump

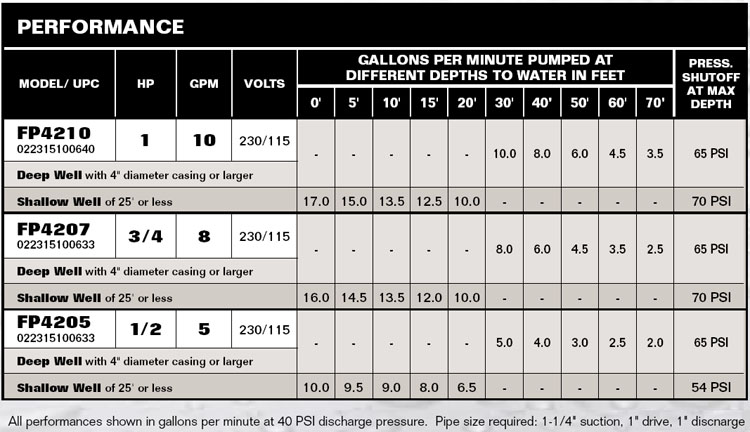

Performance Curves
Specifications
BODY CONSTRUCTION: Cast Iron
HORSEPOWER: 1/2 HP
MAXIMUM CAPACITY: 10 GPM (shallow well)
FLOW at 10' LIFT and 40 PSI: 9 GPM (shallow well)
MAX LIFT: 70'
MAX SHUT-OFF PRESSURE: 65 PSI (shallow well)
PRESSURE SWITCH SETTING: 30 - 50
SUCTION SIZE: 1-1/4" NPT
DRIVE SIZE: 1" NPT
DISCHARGE SIZE: 1" NPT
AMP DRAW (full load): 7 amps on 115v / 3.5 amps on 230v
VOLTAGE: 115v / 230v AC, 60 Hz
RECOMMENDED BREAKER: 15 amp
