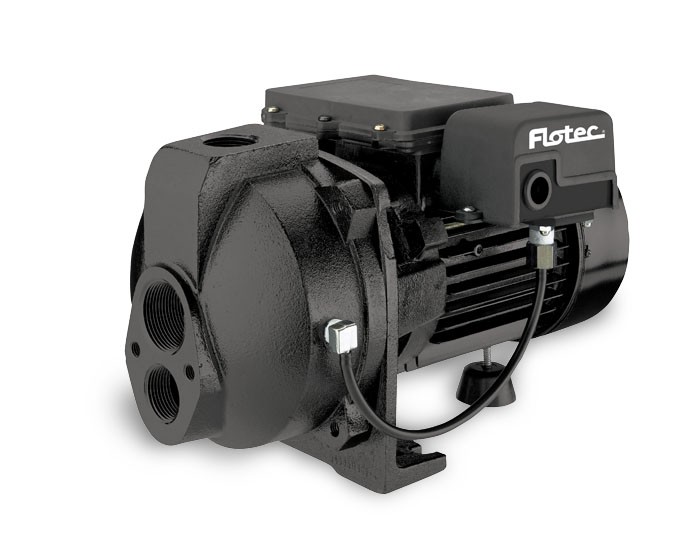

Pentair Flotec FP4210 1 HP Cast Iron Convertible Deep Well Jet Pump

Powerful 1 HP cast iron jet pump brings lots of water to the surface from as deep as 70'.  Flows up to 17 GPM

KEY FEATURES

  • For Deep or Shallow Wells
  • Rugged Pump Housing -- Durable cast iron construction
  • Superior Performance --to depths to water of 70' or less
  • Heavy-Duty Dual-Voltage Motor -- preset at 230v
  • Replaceable Pressure Switch --30/50 operation
  • Includes Ejector Kit

WARRANTY

1-year limited warranty

Find out where to purchase online or in a retail location near you.
Where to Buy

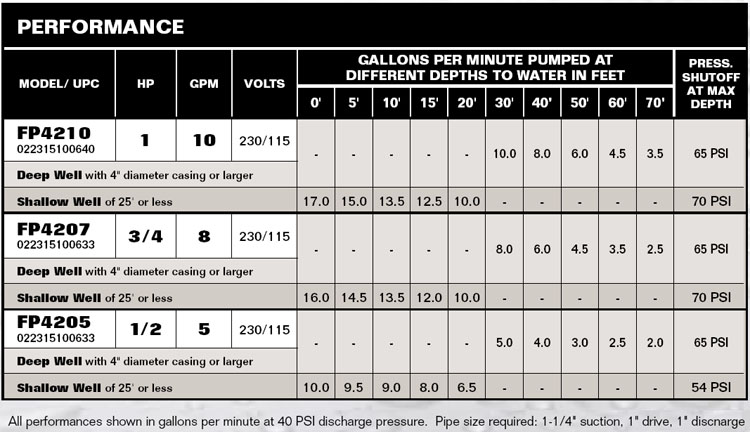

Performance Curves

PerformanceCurves_1 HP Cast Iron Convertible Deep Well Jet Pump

Specifications

BODY CONSTRUCTION:  Cast Iron
HORSEPOWER:  1 HP
MAXIMUM CAPACITY:  17 GPM (shallow well)
FLOW at 10' LIFT and 40 PSI:  13.5 GPM (shallow well)
MAX LIFT:  70'
MAX SHUT-OFF PRESSURE:  70 PSI (shallow well)
PRESSURE SWITCH SETTING:  30/50 PSI
SUCTION SIZE:  1-1/4" NPT
DRIVE SIZE:  1" NPT
DISCHARGE SIZE:  1" NPT
AMP DRAW (full load):  5.5 amps on 230v / 11 amps on 115v
VOLTAGE:  230v / 115v AC, 60 Hz (factory preset to 230v)
RECOMMENDED BREAKER:  15 amp on 230v / 20 amp on 115v
