- Pentair Flotec FP4312 1/2 HP Thermoplastic Convertible Jet Pump

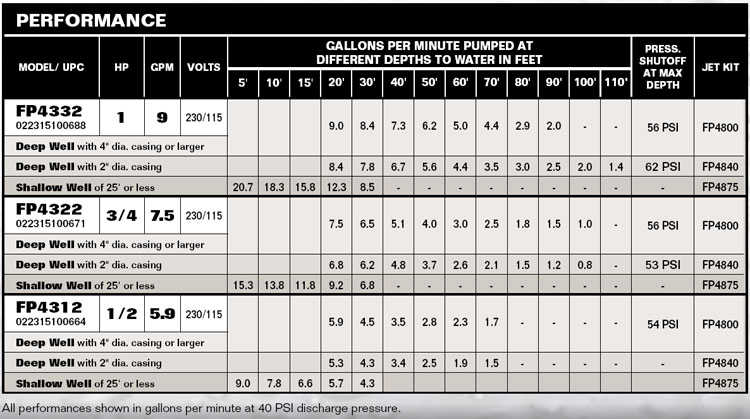

Performance Curves
Specifications
BODY CONSTRUCTION: Thermoplastic
HORSEPOWER: 1/2
MAXIMUM CAPACITY: 9 GPM (shallow well setup)
FLOW AT 10' LIFT and 40 PSI: 7.8 GPM (shallow well setup)
MAX LIFT: 25' w/ shallow well jet kit / 70' w/ deep well jet kit
MAX PSI: 62 psi (shallow well setup)
PRESSURE SWITCH SETTING: 30/50
SUCTION PIPE SIZE: 1-1/4"
MINIMUM SUCTION PIPE SIZE: 1-1/4"
DRIVE PIPE SIZE: 1"
DISCHARGE PIPE SIZE: 1"
MINIMUM DISCHARGE PIPE SIZE: 3/4"
AMP DRAW: 9.9 Amps on 115V / 4.95 Amps on 230V
VOLTAGE: 115v/230v, 60 Hz (factory preset to 115v)
RECOMMENDED BREAKER: 15 amp
MAXIMUM WATER TEMPERATURE: 140 F (60 C)
