Pentair Flotec FP5162 1 HP Thermoplastic Sprinkler Pump

Main Content Starts Here

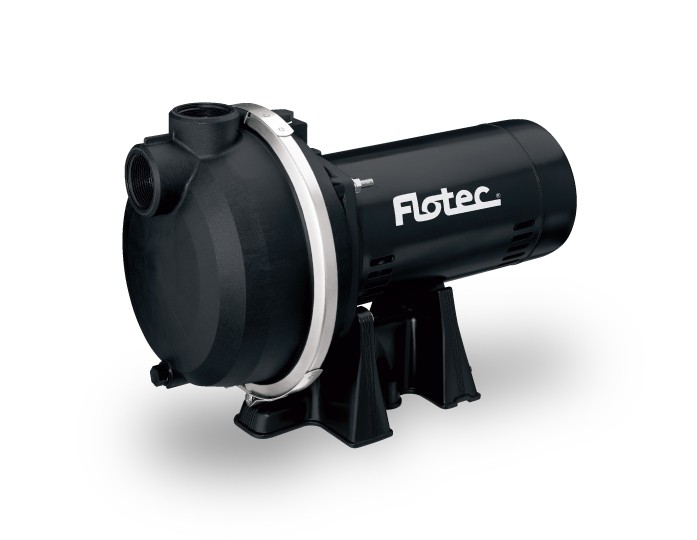

Pentair Flotec FP5162 1 HP Thermoplastic Sprinkler Pump

Corrosion-resistant, self priming sprinkler pumps are constructed of rugged, heavy-duty fiberglass-reinforced thermoplastic. Capable of operating up to 30 sprinkler heads.

Key Features

  • Superior performance at depths to water of 20' or less
  • Fiberglass-reinforced thermoplastic pump housing for the highest corrosion resistance
  • Ready-to-install 230 volt motor (dual voltage)
  • Self-priming after pump housing is initially filled (Check Valve or Foot Valve required)

Warranty

1 year limited warranty

Find out where to purchase online or in a retail location near you.

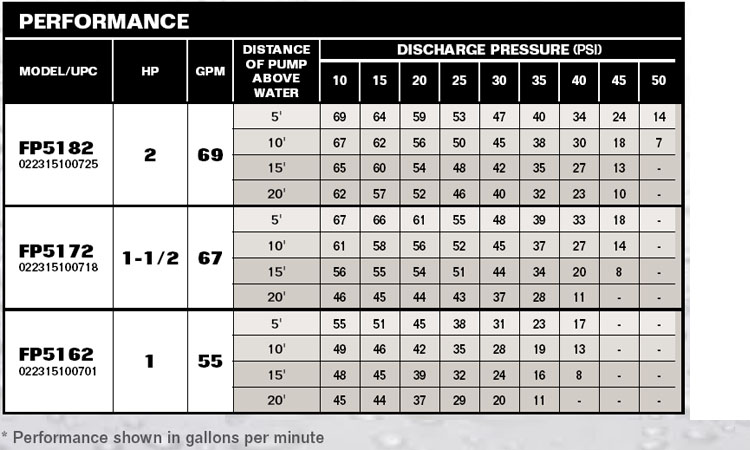

Performance Curves



Accessories

Specifications

BODY CONSTRUCTION:  Thermoplastic
HORSEPOWER:  1
MAXIMUM CAPACITY:  55 GPM
FLOW at 10' LIFT and 30 PSI:  28 GPM
MAX LIFT:  25'
MAXIMUM PRESSURE:  42 psi
SUCTION PIPE SIZE:  1-1/2" NPT
DISCHARGE PIPE SIZE:  1-1/2" NPT
AMP DRAW (full load):  7.4 amps on 230v / 14.8 amps on 115v
VOLTAGE:  230v / 115v, 60 Hz
RECOMMENDED BREAKER:  15 amp on 230v / 20 amp on 115v
MAXIMUM WATER TEMPERATURE:  140 °F (60 °C)
