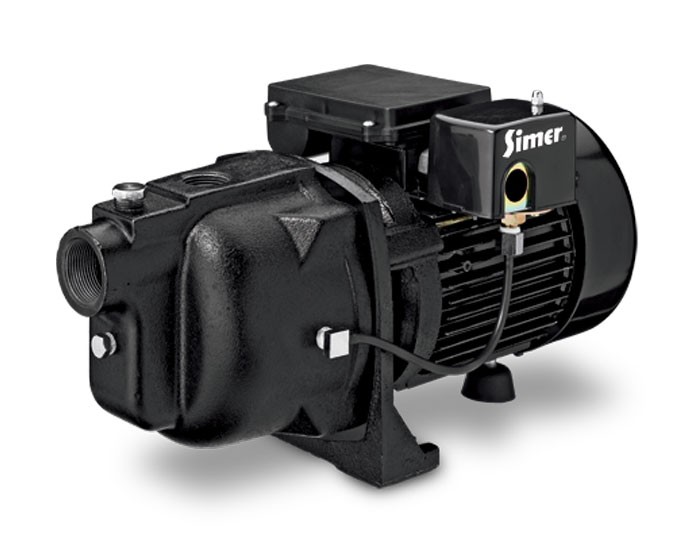

Pentair Simer 2205C 1/2 HP Shallow Well Cast Iron Jet Pump

Main Content Starts Here

Pentair Simer 2205C 1/2 HP Shallow Well Cast Iron Jet Pump

Great performance at depths to 25' (depth-to-water) in a tough cast iron pump.

KEY FEATURES

  • Reliable performance to depths of water 25' or less
  • Rugged cast iron construction maximizes pump life
  • Heavy-duty dual-voltage motor 1/2 HP preset at 115 V
  • Pre-wired pressure switch preset for 30/50 PSI operation
  • Self priming after pump housing is initially filled. Check valve or foot valve required.

WARRANTY

1-year limited warranty

Find out where to purchase online or in a retail location near you.

Performance Curves

PerformanceCurves_1/2 HP Shallow Well Cast Iron Jet Pump

Accessories

Specifications

BODY CONSTRUCTION:  Cast Iron
HORSEPOWER:  1/2 HP
MAXIMUM CAPACITY:  8.5 GPM
FLOW at 10' LIFT and 40 PSI:  6.5 GPM
MAX LIFT:  25'
MAX SHUT-OFF PRESSURE:  65 PSI
PRESSURE SWITCH SETTINGS:  30/50
SUCTION SIZE:  1-1/4" NPT
DISCHARGE SIZE:  1" NPT
AMP DRAW (full load):  8.5 on 115v / 4.2 amps on 230v
VOLTAGE:  115v / 230v AC, 60 Hz (factory pre-set to 115v)
RECOMMENDED BREAKER:  15 amp
