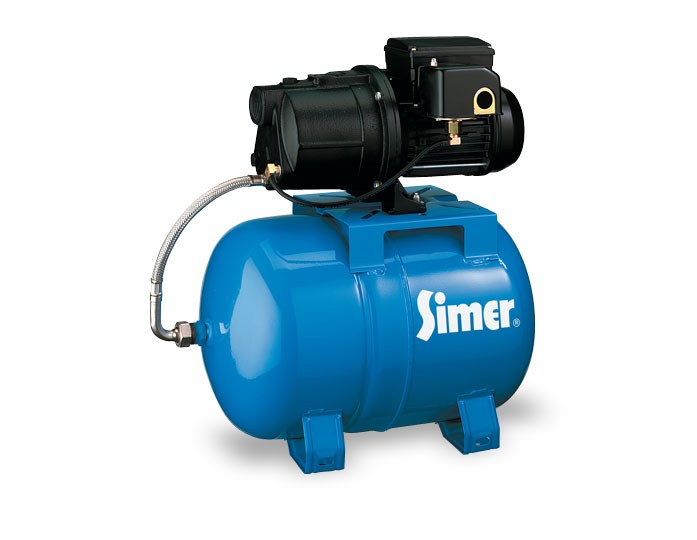

Pentair Simer 2800E 1/2 HP Cast Iron Shallow Well Jet Pump / Tank Combination

Cast iron shallow well jet pump draws water from max of 25' for home water, sprinkling, etc.  Factory mounted on a pre-charged bladder tank, it makes a compact unit for installation in smaller areas.

KEY FEATURES

  • Our model 2800 Cast Iron Jet pump
  • 15 gallon (equivalency) pre-charged bladder style tank
  • Compact design

WARRANTY

1-year limited warranty

Find out where to purchase online or in a retail location near you.

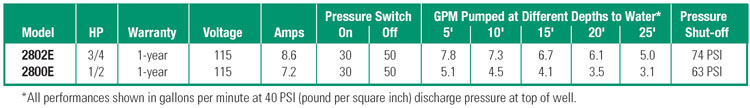

Performance Curves



Accessories

Specifications

BODY CONSTRUCTION:  Cast Iron pump / steel tank
HORSEPOWER:  1/2 HP
MAXIMUM CAPACITY:  5.1 GPM
FLOW AT 10' LIFT AND 40 PSI:  4.5 GPM
MAX LIFT:  25'
MAXIMUM SHUT-OFF PRESSURE:  63 PSI
PRESSURE SWITCH SETTING:  30 - 50 PSI
SUCTION SIZE:  1" NPT (female)
DISCHARGE SIZE:  1" NPT (female)
AMP DRAW (full load):  7.2 Amps (full load)
VOLTAGE:  115V AC, 60 Hz
RECOMMENDED BREAKER:  15 Amps
