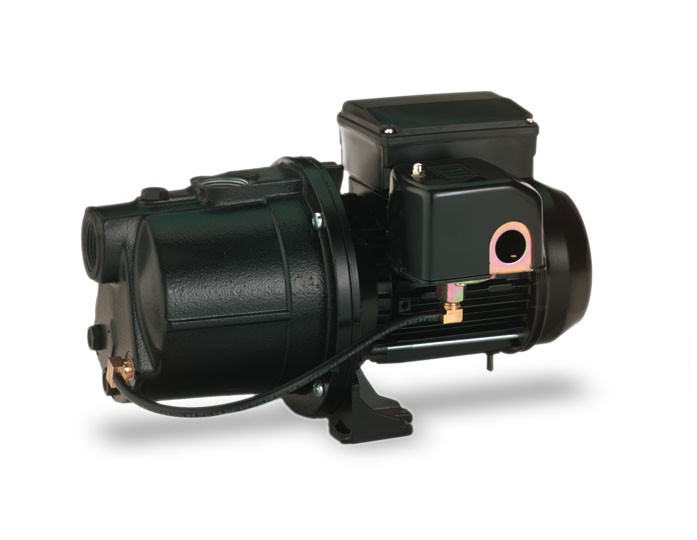

Pentair Simer 2802 3/4 HP Cast Iron Shallow Well Jet Pump

Cast iron shallow well jet pump draws water from max of 25' for home water, sprinkling, etc.

Key Features

  • Sturdy cast iron construction
  • High performance

Warranty

1-year limited warranty

Find out where to purchase online or in a retail location near you.
Where to Buy

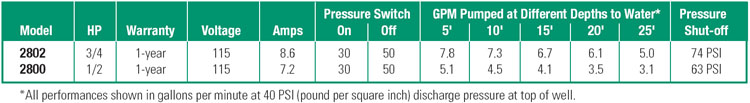

Performance Curves

PerformanceCurves_3/4 HP Cast Iron Shallow Well Jet Pump

Specifications

Item #Horsepower
28023/4
Item #Horsepower
28023/4
Show less

BODY CONSTRUCTION:  Cast Iron
MAXIMUM CAPACITY:  7.8 GPM
FLOW AT 10' LIFT AND 40 PSI:  7.3 GPM
MAX LIFT:  25'
MAXIMUM SHUT-OFF PRESSURE:  74 PSI
MAXIMUM INLET PRESSURE:
PRESSURE SWITCH SETTING:  30 - 50 PSI
SUCTION SIZE:  1" NPT (female)
DISCHARGE SIZE:  1" NPT (female)
AMP DRAW (full load):  8.6 Amps
VOLTAGE:  115V AC, 60 Hz
RECOMMENDED BREAKER:  15 Amp
