Pentair Simer 2802E 3/4 HP Cast Iron Shallow Well Jet Pump / Tank System

Main Content Starts Here

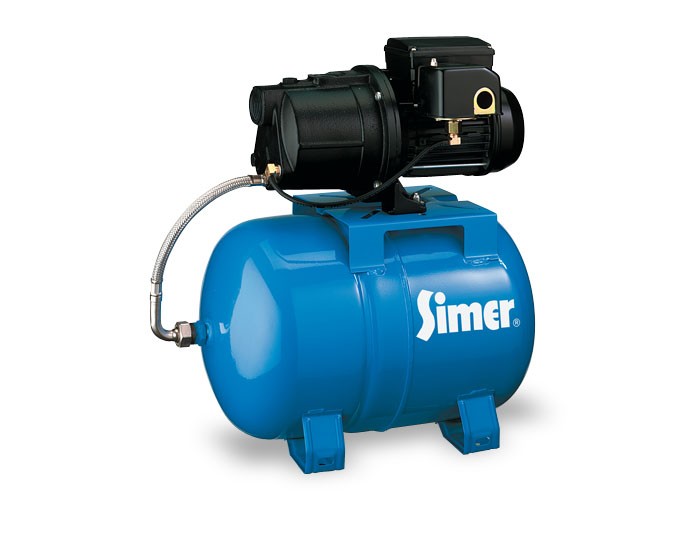

Pentair Simer 2802E 3/4 HP Cast Iron Shallow Well Jet Pump / Tank System

Our model 2802 cast iron shallow well jet pump pre-mounted on a bladder tank makes a very convenient, compact system for installation in smaller or lesser-used applications.

KEY FEATURES

  • Our model 2802 jet pump
  • 15 gallon (equivalency) bladder-style pre-charged pressure tank
  • Convenient, compact design

WARRANTY

1-year limited warranty

Explore purchase options available for this product.
Where to Buy

Performance Curves





Specifications

BODY CONSTRUCTION:  Cast Iron Pump / Steel Tank
HORSEPOWER:  3/4 HP
MAXIMUM CAPACITY:  7.8 GPM
FLOW AT 10' LIFT AND 40 PSI:  7.3 GPM
MAX LIFT:  25'
MAXIMUM SHUT-OFF PRESSURE:  74 PSI
PRESSURE SWITCH SETTING:  30 - 50 PSI
SUCTION SIZE:  1" NPT (female)
DISCHARGE SIZE:  1" NPT (female)
AMP DRAW (full load):  8.6 Amps
VOLTAGE:  115V AC, 60 Hz
RECOMMENDED BREAKER:  15 Amp
