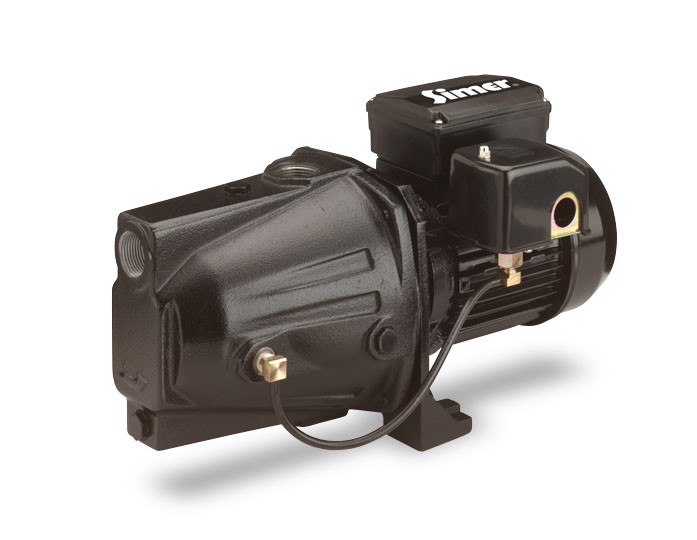

- Pentair Simer 2803 1 HP Cast Iron Shallow Well Jet Pump
Performance Curves
Specifications
BODY CONSTRUCTION: Cast Iron
HORSEPOWER: 1 HP
MAXIMUM CAPACITY: 11 GPM
FLOW AT 10' LIFT AND 40 PSI: 10.2 GPM
MAX LIFT: 25'
MAXIMUM SHUT-OFF PRESSURE: 68 PSI
MAXIMUM INLET PRESSURE:
PRESSURE SWITCH SETTINGS: 30 - 50 PSI
SUCTION SIZE: 1" NPT (female)
DISCHARGE SIZE: 1" NPT (female)
AMP DRAW (full load): 10.5 Amps
VOLTAGE: 115V, 60 Hz
RECOMMENDED BREAKER: 15 Amp
