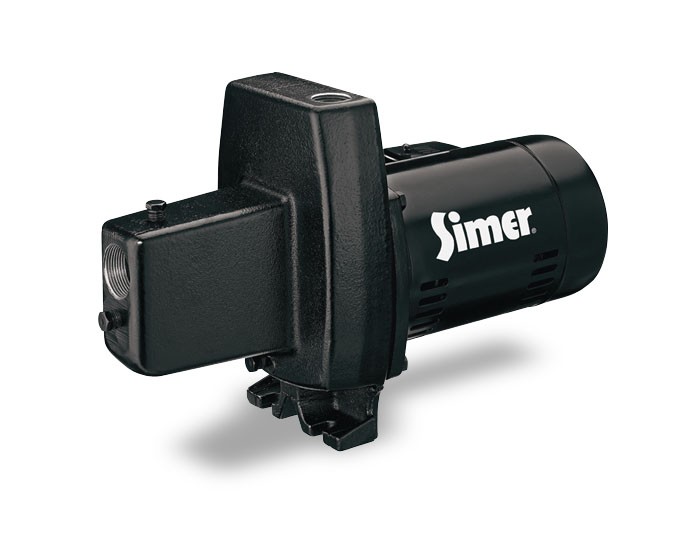

- Pentair Simer 2805E-02 1/2 HP Cast Iron Shallow Well Jet Pump

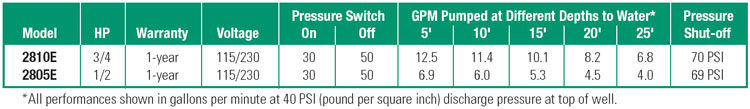

Performance Curves

Accessories
-
Pentair Parts2O TC2501LF-P2 1-1/4" Lead-Free Brass & Stainless Steel Foot Valve
-
Pentair Simer TC2505LF-P2 1-1/4" Brass Check Valve
-
Pentair Simer FPP1550-P2 Seal and Gasket Kit (for models 2805E-02, 2810E-02)
-
Pentair Simer FPP1560-P2 Overhaul Kit for Jet Model 2805E-02
-
Pentair Parts2O FPADT-P2 1" Galvanized Discharge Tee
Resources
Specifications
Resources
BODY CONSTRUCTION: Cast Iron
HORSEPOWER: 1/2 HP
MAXIMUM CAPACITY: 6.9 GPM
FLOW AT 10' LIFT AND 40 PSI: 6 GPM
MAX LIFT: 25'
MAXIMUM SHUT-OFF PRESSURE: 69 PSI
MAXIMUM INLET PRESSURE: 50 psi (inlet pressure + discharge not to exceed 100 psi)
PRESSURE SWITCH SETTINGS: 30 - 50 PSI
SUCTION SIZE: 1¼" NPT (female)
DISCHARGE SIZE: 1" NPT (female)
AMP DRAW (full load): 4.95 Amps on 230V / 9.9 Amps on 115V
VOLTAGE: 115V / 230V, 60 Hz (factory pre-set to 115v)
RECOMMENDED BREAKER: 15 Amp
MAXIMUM WATER TEMPERATURE: 140°F (60°C)
OWNER'S MANUAL: 2805E-02, 2810E-02
Download Manual
PARTS LISTING: 2805E-02, 2810E-02
Download Parts
SPECIFICATIONS: 2805E, 2810E
Download Specs
INSTRUCTIONS: PRESSURE SWITCH ADJUSTMENT
Download Instructions
PARTS LISTING: 2805E-01, 2806E-01, 2810E-01, 2815E-01
Download Parts
PARTS LISTING: 2805E, 2806E, 2810E, 2815E
Download Parts
