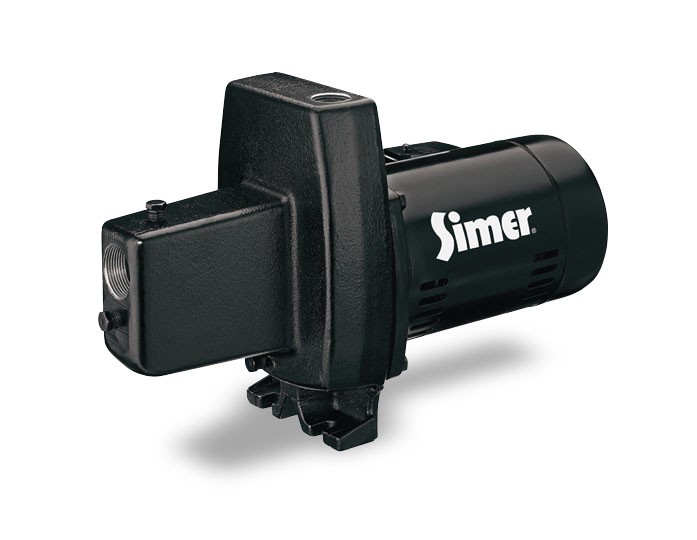

Pentair Simer 2810E-02 3/4 HP Cast Iron Shallow Well Jet Pump

Cast iron shallow well jet pump can pull water from max of 25'

Key Features

  • Strong Cast Iron Construction
  • Compact design
  • Superior performance

Warranty

1-year limited warranty

Find out where to purchase online or in a retail location near you.

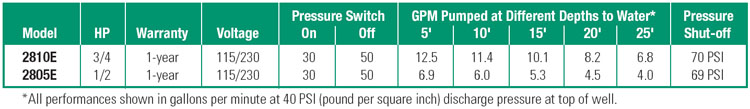

Performance Curves

PerformanceCurves_3/4 HP Cast Iron Shallow Well Jet Pump

Accessories

Specifications

BODY CONSTRUCTION:  Cast Iron
HORSEPOWER:  1 HP
MAXIMUM CAPACITY:  12.5 GPM
FLOW AT 10' LIFT AND 40 PSI:  11.4 GPM
MAX LIFT:  25'
MAXIMUM SHUT-OFF PRESSURE:  70 PSI
MAXIMUM INLET PRESSURE:  50 psi (inlet pressure + discharge not to exceed 100 psi)
PRESSURE SWITCH SETTING:  30 - 50 PSI
SUCTION SIZE:  1¼" NPT (female)
DISCHARGE SIZE:  1" NPT (female)
AMP DRAW (full load):  6.2 Amps on 230v / 12.4 Amps on 115V
VOLTAGE:  230v / 115v (factory pre-set to 230v)
RECOMMENDED BREAKER:  15 Amp on 230v / 20 Amp on 115v
MAXIMUM WATER TEMPERATURE:  140°F (60°C)
